Schneider Electric

Schneider AvatarOn E8315DACUSB 21W USB Socket Wine Gold

SKU: E8315DACUSB_WG
(0)
AED 373.00 inc. VAT
Out of stock
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

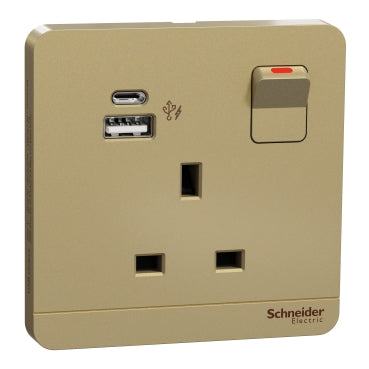

Schneider Electric AvatarOn E8315DACUSB 13A Switched Socket with USB Type A + C Charger

The AvatarOn E8315DACUSB combines a 3-pole 13A switched socket with a fast-charging 21W USB Type A and Type C outlet in a single Wine Gold wall plate. Designed for flush mounting into standard mounting boxes, it suits premium residential and commercial installations across the UAE where convenient, high-power device charging is needed alongside standard power supply.

Key Features

  • 3P 13A switched socket with shutters, ON/OFF power-socket outlet function
  • Integrated USB Type A and Type C ports delivering up to 21W combined output
  • USB output up to 5V/3A (Type A or C) or 5V/2.4A per port when both used simultaneously
  • Built-in USB protection: MOV surge protection, overcurrent, and over-temperature protection
  • Rich Wine Gold finish with a brilliant painted surface for a premium look

Technical Specifications

Specification Details
Brand Schneider Electric
Range AvatarOn
Model E8315DACUSB_WG
Rated Current 13A at 250V AC 50Hz
Socket Outlets 1 x 3P with shutters, British standard
Switch Function ON/OFF power-socket outlet
Connector Type USB Type A, USB Type C
USB Power Output 21W total; 5V/3A (Type A or C alone), 5V/2.4A max per port when combined
Number of Gangs 1 gang
Colour Wine Gold
Material Polycarbonate (grid plate), brass (contact plate)
Surface Finish Brilliant, painted
Device Mounting Flush, 47mm, mounting box required
Dimensions 86 x 86 x 37.5 mm (H x W x D)
Embedding Depth 27.5 mm

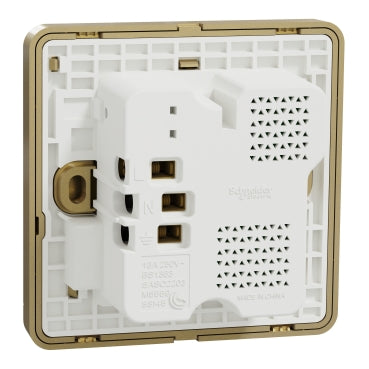

Electrical Connection 3 screw terminal, M3.5 screws
Clamping Capacity 1 x 4mm² for solid cable
IP Rating IP20
Operating Temperature 0°C to 40°C

Applications

  • Bedside and living room power points with fast USB-C charging in premium UAE homes
  • Office desks and workstations needing both mains power and device charging
  • High-end hotel rooms and serviced apartments across the UAE
  • New-build and retrofit projects upgrading standard sockets to combined power and USB charging points
