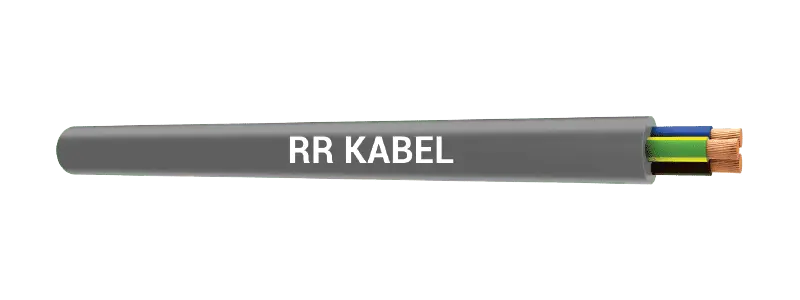

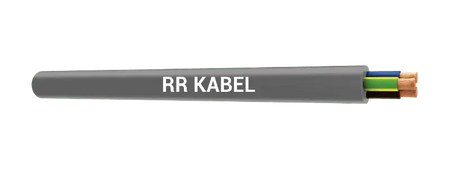

RR PVC Flexible Cable 6.0mm² 5-Core
The RR PVC Flexible Cable 6.0mm² 5-Core delivers full three-phase, neutral, and earth supply in a single heavy-duty flexible cable. Its 6.0mm² conductors are suited for the heaviest portable industrial equipment, large motors, and site plant connections across UAE construction and industrial projects. Sold per metre.
Key Features
- 6.0mm² fine-stranded 5-core for complete three-phase flexible supply
- Full L1, L2, L3, N, and E in one heavy-duty cable
- PVC insulation and sheath for robust industrial performance
- Flexible stranding for manageable routing at large cross-section
- Sold per metre for project-accurate ordering
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
5 |
| Conductor Cross-Section |
6.0mm² |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 |
| Unit |
Per Metre |
Applications
- Heavy industrial machinery three-phase flexible supply
- Large site plant and equipment connections
- Industrial process three-phase motor flexible leads
- Commercial building services heavy equipment connections
FAQ
-
What does the 6.0mm² cross-section rating mean, and how do I know it's the right size for my circuit?
The mm² figure is the conductor's cross-sectional area, which determines how much current it can safely carry over a given run length. 6.0mm² 5-core is sized for heavy three-phase equipment needing a neutral — always confirm load current, run length, and voltage drop against the equipment's rating (or ask a licensed electrician) before selecting a cross-section.
-
Can I order an exact length, and how is the price calculated?
Yes — this cable is sold per metre, so you order the exact length your run requires and the price scales with quantity.
-
What's the difference between this multicore Flexible Cable and RR Kabel's Single-Core Building Wire?
Building Wire is a solid single conductor per cable, designed for fixed conduit runs in walls and containment. This PVC Flexible Cable bundles multiple fine-stranded cores (here, 5) under one common sheath, so it flexes and is built as a single supply lead for large equipment rather than several separate conductors run in parallel.
-
Does this need to be installed by an electrician?
Yes — three-phase machinery connections at this current rating should be terminated and installed by a licensed electrician per UAE wiring regulations.
-
What does each of the 5 cores carry?
The five cores provide the three phase conductors (L1, L2, L3), a neutral, and an earth — a complete three-phase supply with protective earth in a single heavy-duty flexible cable.
