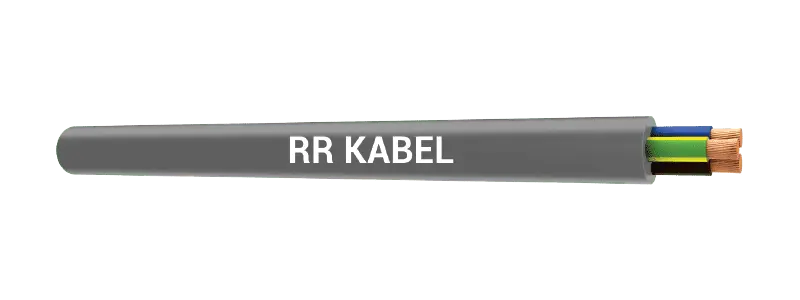

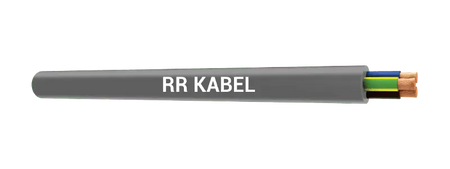

RR Kabel 6.0mm² 4-Core PVC Flexible Cable

RR PVC Flexible Cable 6.0mm² 4-Core

The RR PVC Flexible Cable 6.0mm² 4-Core is a heavy-duty four-wire flexible cable for high-current three-phase equipment without separate neutral, industrial machinery, and large portable equipment connections. Its 6.0mm² conductors deliver the current capacity required for demanding three-phase applications across UAE industrial and commercial projects. Sold per metre.

Key Features

• 6.0mm² fine-stranded 4-core for heavy three-phase flexible connections
• High current capacity for large industrial equipment
• PVC insulation and sheath for industrial-grade durability
• Flexible construction for moveable and semi-fixed heavy equipment
• Sold per metre for precise ordering

Technical Specifications

Applications

• Heavy three-phase industrial machinery connections
• Large portable equipment and site plant leads
• Commercial HVAC and chiller flexible supply
• Industrial process equipment flexible connections

FAQ

• What does the 6.0mm² cross-section rating mean, and how do I know it's the right size for my circuit?
  The mm² figure is the conductor's cross-sectional area, which determines how much current it can safely carry over a given run length. 6.0mm² 4-core is sized for high-current three-phase machinery without a neutral requirement — always confirm load current, run length, and voltage drop against the equipment's rating (or ask a licensed electrician) before selecting a cross-section.
• Can I order an exact length, and how is the price calculated?
  Yes — this cable is sold per metre, so you order the exact length your run requires and the price scales with quantity.
• What's the difference between this multicore Flexible Cable and RR Kabel's Single-Core Building Wire?
  Building Wire is a solid single conductor per cable, designed for fixed conduit runs in walls and containment. This PVC Flexible Cable bundles multiple fine-stranded cores (here, 4) under one common sheath, so it flexes and is built as a single supply lead for equipment that's moved or vibrates, rather than several separate conductors run in parallel.
• Does this need to be installed by an electrician?
  Yes — three-phase machinery connections at this current rating should be terminated and installed by a licensed electrician per UAE wiring regulations.
• What does each of the 4 cores carry?
  The four cores are the three phase conductors (L1, L2, L3) plus an earth — used where the load doesn't require a neutral, such as three-phase motor connections.
