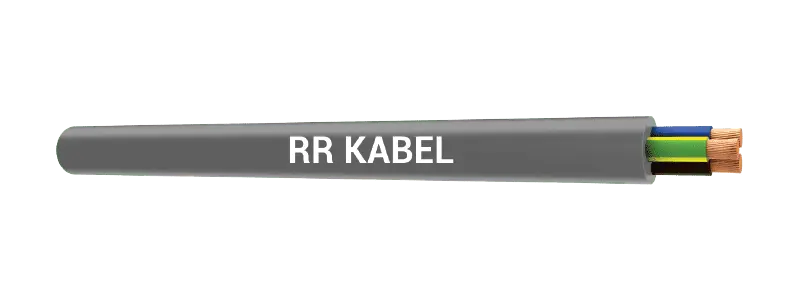

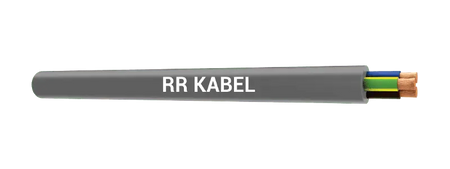

RR PVC Flexible Cable 25mm² 5-Core
The RR PVC Flexible Cable 25mm² 5-Core is a premium large-section five-wire flexible cable for the most demanding three-phase industrial connections in UAE projects. Designed for large motors, heavy compressors, and major industrial plant, its 25mm² conductors deliver exceptional current capacity in a single manageable flexible cable. Sold per metre.
Key Features
- 25mm² stranded 5-core for the most demanding three-phase connections
- Exceptional current capacity for large industrial motors and plant
- Full five-wire supply — L1, L2, L3, N, and E in one cable
- PVC insulation and sheath for industrial-grade durability
- Sold per metre for large-project precision ordering
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
5 |
| Conductor Cross-Section |
25mm² |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 |
| Unit |
Per Metre |
Applications
- Large industrial motor, pump, and compressor connections
- Major construction site plant and generator connections
- Heavy industrial process equipment three-phase supply
- Large data centre and critical facility equipment connections
FAQ
-
What does the 25mm² cross-section rating mean, and how do I know it's the right size for my circuit?
The mm² figure is the conductor's cross-sectional area, which sets how much current it can safely carry over a given run length. 25mm² is a large-section flexible cable for high-current three-phase loads such as large motors and compressors — always verify load current, run length, and voltage drop against the equipment's nameplate rating (or ask a licensed electrician) before selecting a cross-section this size.
-
Can I order an exact length, and how is the price calculated?
Yes — this cable is sold per metre, so you order the exact length your run requires and the price scales with quantity, even at this large cross-section.
-
What's the difference between this multicore Flexible Cable and RR Kabel's Single-Core Building Wire?
Building Wire is a solid single conductor per cable, made for fixed conduit runs in walls and containment. This PVC Flexible Cable bundles multiple fine-stranded cores (here, 5) under one common sheath so it can flex, making it suited to connecting large equipment where routing several separate single-core conductors isn't practical.
-
Does this need to be installed by an electrician?
Yes — at this cross-section it's feeding significant three-phase loads, so termination and installation should be carried out by a licensed electrician per UAE wiring regulations.
-
What does each of the 5 cores carry?
The five cores provide the three phase conductors (L1, L2, L3), a neutral, and an earth — a complete three-phase supply with protective earth in a single heavy-duty flexible cable.
