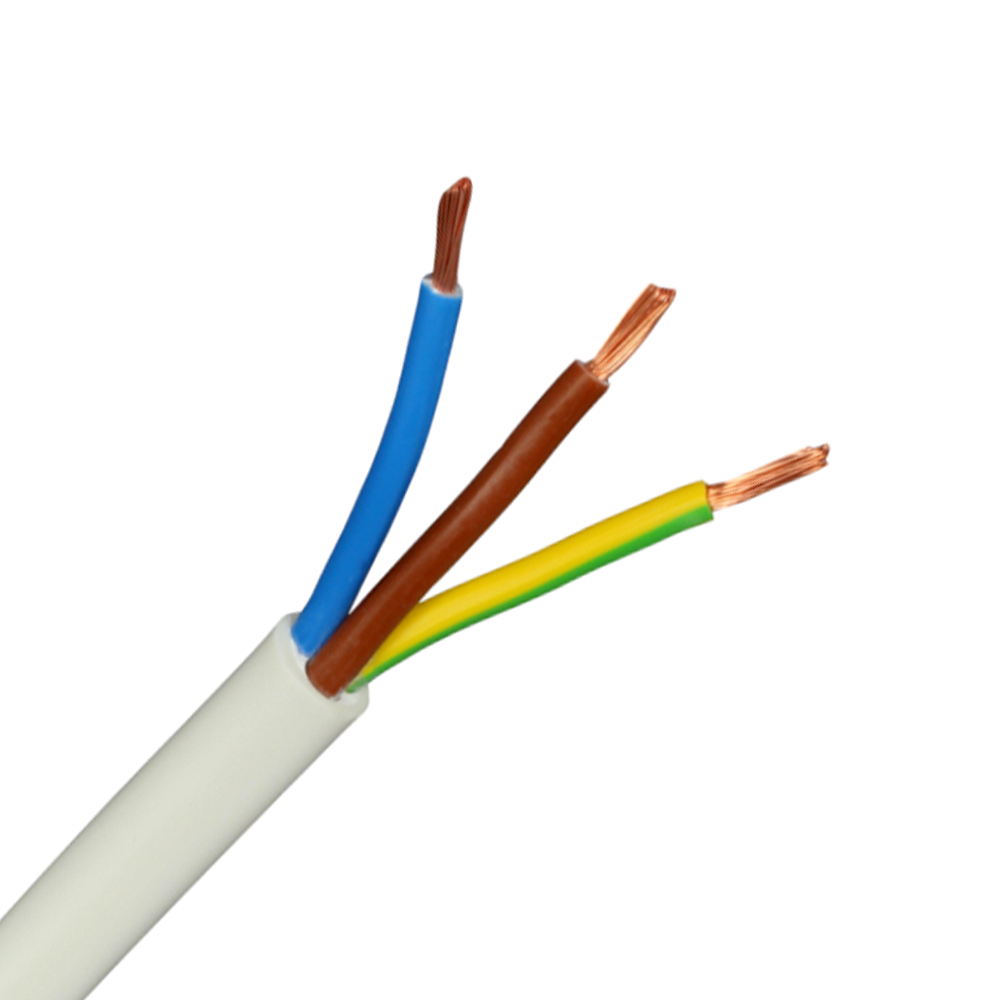

RR PVC Flexible Cable 1.0mm² 3-Core
The RR PVC Flexible Cable 1.0mm² 3-Core is a standard three-wire flexible cable for earthed portable appliances, power tools, and equipment connections requiring a protective earth conductor. Its fine-stranded construction provides the flexibility required for regularly moved equipment in UAE residential, commercial, and light industrial environments. Sold per metre.
Key Features
- 1.0mm² fine-stranded 3-core with earth conductor included
- Suitable for Class I (earthed) portable appliances and tools
- PVC insulation and sheath for robust everyday performance
- Flexible construction for moveable equipment connections
- Sold per metre for accurate ordering
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
3 |
| Conductor Cross-Section |
1.0mm² |
| Conductor |
Bare copper, fine-wire flexible stranding (Class 5, EN 60228) |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 / equivalent BS EN 50525-2-11 (H05VV-F) |
| Operating Temperature |
-5°C to +70°C (flexing); up to +70°C fixed |
| Unit |
Per Metre |
Applications
- Earthed portable appliance and power tool connections
- Domestic and commercial equipment leads with earth
- Extension lead and distribution board flex
- Light-duty three-wire equipment connections
FAQ
-
What does the 1.0mm² cross-section rating mean, and how do I pick the right size?
1.0mm² is the copper conductor's cross-sectional area, which determines how much current it can safely carry. This size suits light-to-moderate earthed loads; for higher-current tools and appliances, 1.5mm² or 2.5mm² 3-core is usually more appropriate. Check the appliance rating or ask an electrician if unsure.
-
Can I order an exact length, and how is the price calculated?
Yes — sold per metre at a fixed per-metre rate, so you pay only for the length required. No roll minimum, and full coils are available for larger orders.
-
What's the difference between this and RR Kabel's single-core Building Wire?
Building Wire is a solid single conductor for fixed wiring in conduit. This 3-core PVC Flexible Cable is fine-stranded for real flexibility and includes its own earth core, designed for connecting portable or moveable equipment rather than permanent circuits.
-
Why does this have 3 cores instead of 2?
The third core is a protective earth conductor, required for Class I appliances and power tools with exposed metal parts. If your equipment is double-insulated (Class II) and doesn't need an earth, the 2-core version is sufficient.
-
Does this need to be installed by an electrician?
Connections into fixed circuits, distribution boards, or permanent equipment should be made by a licensed electrician per UAE wiring regulations. This is a trade/contractor-supply product, not intended for DIY household wiring.
