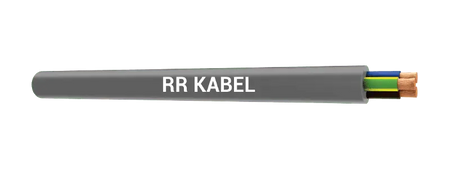

RR PVC Flexible Cable 1.0mm² 2-Core
The RR PVC Flexible Cable 1.0mm² 2-Core is a general-purpose flexible cable for portable equipment, extension connections, and two-wire appliance leads across UAE residential and commercial applications. Its 1.0mm² conductor offers greater current capacity than 0.75mm² flex, making it suitable for heavier portable loads. Sold per metre.
Key Features
- 1.0mm² fine-stranded 2-core for portable equipment connections
- Higher current capacity than 0.75mm² equivalent flex
- PVC insulation and sheath for robust everyday use
- Flexible construction suitable for moveable appliances
- Sold per metre for exact quantity ordering
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
2 |
| Conductor Cross-Section |
1.0mm² |
| Conductor |
Bare copper, fine-wire flexible stranding (Class 5, EN 60228) |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 / equivalent BS EN 50525-2-11 (H05VV-F) |
| Operating Temperature |
-5°C to +70°C (flexing); up to +70°C fixed |
| Unit |
Per Metre |
Applications
- Portable appliance and equipment connections
- Extension lead construction and repair
- Two-wire domestic and commercial equipment leads
- Light power tool and device connections
FAQ
-
What does the 1.0mm² cross-section rating mean, and how do I pick the right size?
1.0mm² refers to the copper conductor's cross-sectional area, which sets its current-carrying capacity — this size handles moderate portable loads better than 0.75mm² flex. For heavier appliances like heaters or power tools, 1.5mm² or 2.5mm² is usually the better choice. Check the appliance's rated current or ask an electrician if unsure.
-
Can I order an exact length, and how is the price calculated?
Yes — this cable is sold per metre at a fixed per-metre rate, so you only pay for the length you need. No roll minimum applies, and full coils are available for bulk project orders.
-
What's the difference between this and RR Kabel's single-core Building Wire?
Building Wire is a solid single conductor for fixed installation in conduit or trunking. This 2-core PVC Flexible Cable is fine-stranded for genuine flexibility, designed for connections to portable or moveable equipment rather than permanent building circuits.
-
Is a 2-core (no earth) cable suitable for my appliance?
2-core cable carries no protective earth, so it's intended for double-insulated (Class II) equipment only. Appliances requiring an earth connection need the 3-core version.
-
Does this need to be installed by an electrician?
Connections into fixed circuits, distribution points, or permanent fittings should be carried out by a licensed electrician per UAE wiring regulations. This is a trade/contractor-supply product, not intended for DIY household wiring.
