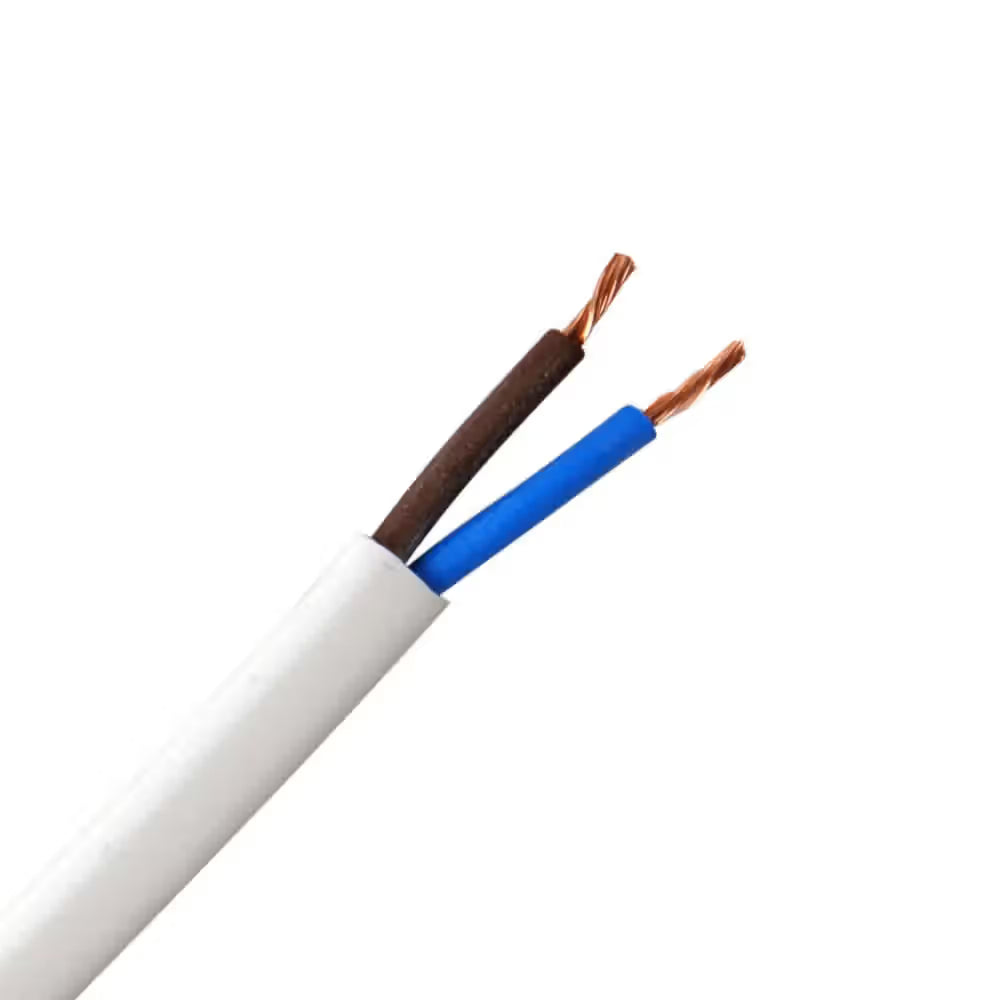

RR PVC Flexible Cable 0.75mm² 2-Core
The RR PVC Flexible Cable 0.75mm² 2-Core is a light-duty flexible cable for portable appliances, lamp connections, and low-current two-wire circuits. Its fine-stranded construction provides the flexibility needed for moveable equipment and pendant lighting in UAE residential, hospitality, and commercial environments. Sold per metre.
Key Features
- 0.75mm² fine-stranded 2-core construction for light flexible applications
- PVC insulation and sheath for durability in light-duty use
- Flexible construction for pendants, lamps, and portable devices
- Suitable for 220–240V AC supply applications
- Sold per metre for precise ordering
Technical Specifications
| Specification |
Details |
| Brand |
RR Cables |
| Cores |
2 |
| Conductor Cross-Section |
0.75mm² |
| Conductor |
Bare copper, fine-wire flexible stranding (Class 5, EN 60228) |
| Insulation |
PVC |
| Sheath |
PVC |
| Voltage Rating |
300/500V |
| Standard |
BS 6500 / equivalent BS EN 50525-2-11 (H05VV-F) |
| Operating Temperature |
-5°C to +70°C (flexing); up to +70°C fixed |
| Unit |
Per Metre |
Applications
- Pendant lamp and chandelier flex connections
- Light portable appliances and table lamps
- Low-current two-wire equipment connections
- Residential and hospitality lighting installations
FAQ
-
What does the 0.75mm² cross-section rating mean, and is it right for my circuit?
0.75mm² is the copper conductor's cross-sectional area, which determines its safe current-carrying capacity. This size suits light loads such as pendant lamps, low-wattage fixtures, and small portable devices — for higher-current appliances (heaters, fans, power tools) step up to 1.5mm² or 2.5mm². If you're unsure of the load, check with a qualified electrician.
-
Can I order an exact length, and how is the price calculated?
Yes — this cable is sold per metre, so you order the exact length you need and are charged at the per-metre rate. There's no fixed roll minimum, though we can also supply full coils for larger projects.
-
What's the difference between this and RR Kabel's single-core Building Wire?
Building Wire is a solid or semi-flexible single conductor designed for fixed installation inside conduit or trunking. This PVC Flexible Cable is a fine-stranded, genuinely flexible 2-core cable meant for connections that move or need to be routed to portable/moveable equipment, such as lamp flex or appliance leads.
-
Is a 2-core (no earth) cable safe for all appliances?
A 2-core cable has no protective earth conductor, so it's suitable only for double-insulated (Class II) appliances and fittings that don't require earthing. If your equipment has an earth terminal or metal casing requiring a safety earth, use the 3-core version instead.
-
Does this need to be installed by an electrician?
Final connections into fixed lighting circuits, junction boxes, or permanent fittings should be made by a licensed electrician in line with UAE wiring regulations. This product is intended for trade and contractor use, not DIY household wiring.
