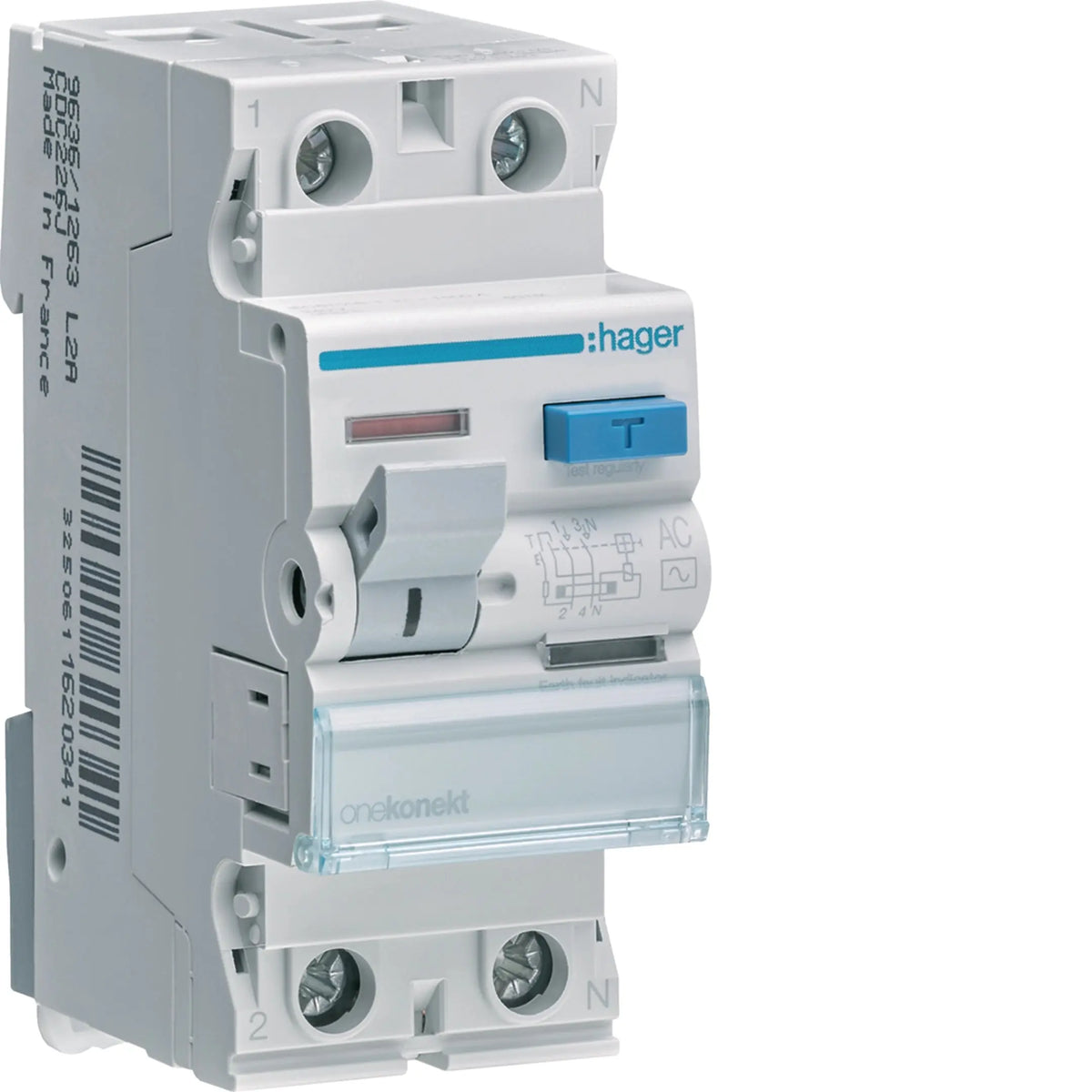

The Hager CDC241J RCCB (ELCB) 40A, 2P, 30mA delivers reliable earth-leakage protection for people and equipment. With a fast-acting trip and 30mA sensitivity, it suits UAE residential, commercial, and light industrial installations.
Key Features
- 2-pole RCCB/ELCB, 40A rated current
- 30 mA earth-leakage sensitivity for enhanced personal safety
- Fast-acting trip mechanism for rapid disconnection
- Compact, durable design for modular electrical panels
- IEC-compliant protection suitable for UAE electrical projects
Technical Specifications
| Specification |
Value |
| Brand |
Hager |
| Model |
CDC241J |
| Rated Current |
40A |
| Poles |
2P |
| Sensitivity |
30mA |
| Device Type |
RCCB / ELCB |
| Standards |
IEC |
Datasheets: Download PDF
Applications
- Residential properties: apartments, villas
- Commercial spaces: offices, schools, retail stores
- Light industrial power distribution panels
- Electrical panels requiring 30 mA protection
FAQ
-
What's the difference between an RCCB and an MCB?
An RCCB (ELCB) detects earth leakage current and disconnects the circuit to protect against electric shock — it does not protect against overload or short-circuit current. It's normally installed alongside MCBs, which handle overload and short-circuit protection; the two work together, not as substitutes for each other.
-
What does the 30mA rating mean, and do I need this sensitivity?
30mA is the sensitivity required for personal shock protection on socket outlet and bathroom circuits per most wiring regulations. If you're unsure which sensitivity your board needs, an electrician can confirm from the circuit design.
-
How many poles do I need?
This is a 2-pole unit, suited to a single-phase circuit (with neutral switched). Match the pole count to your incoming supply and the circuit(s) you're protecting.
-
Can I install this myself?
No — an RCCB is installed inside a distribution board and connected to live busbars. This must be done by a licensed electrician.
