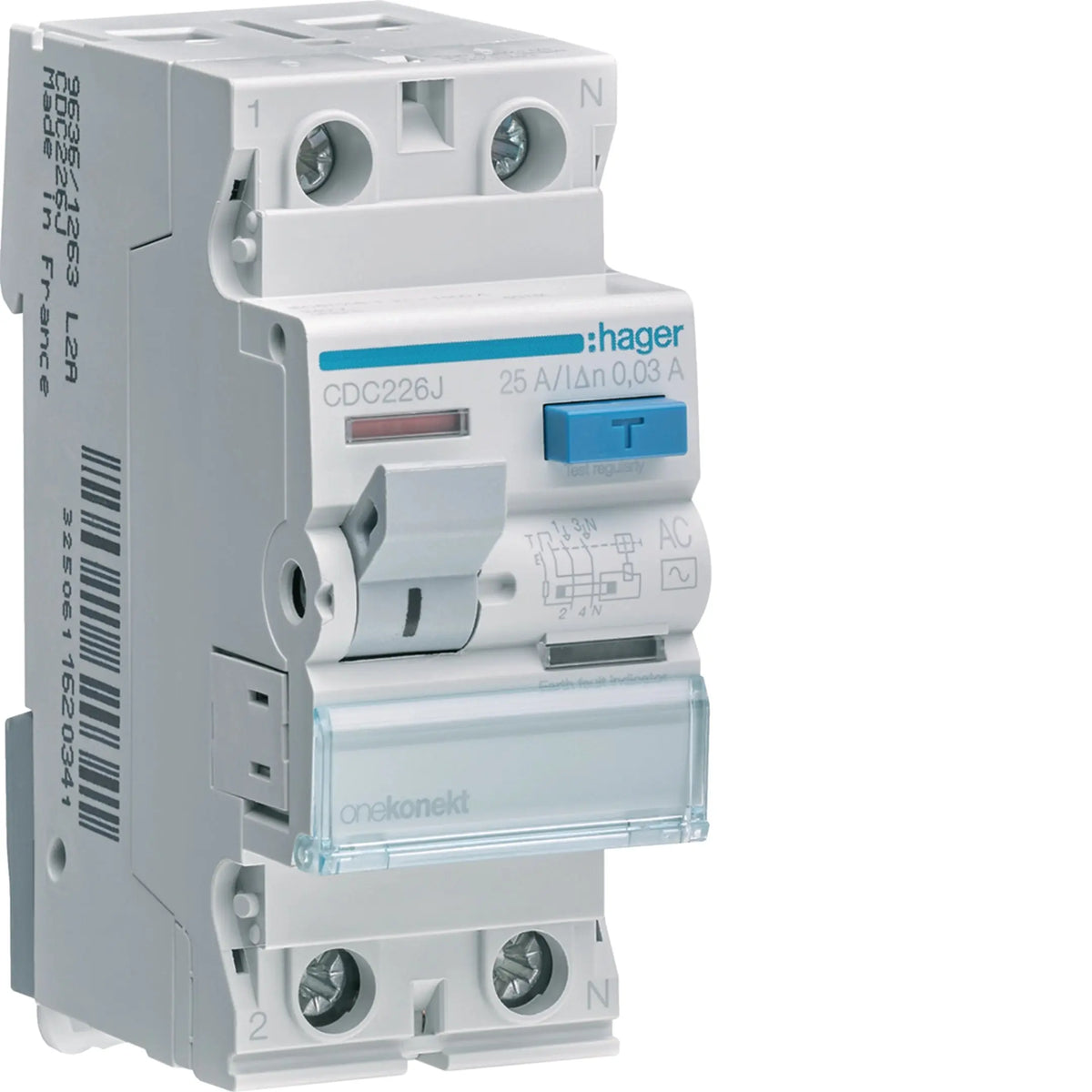

Hager CDC226J Onekonekt 2-pole 25A 30mA Type AC RCCB (ELCB) — official Hager product photo

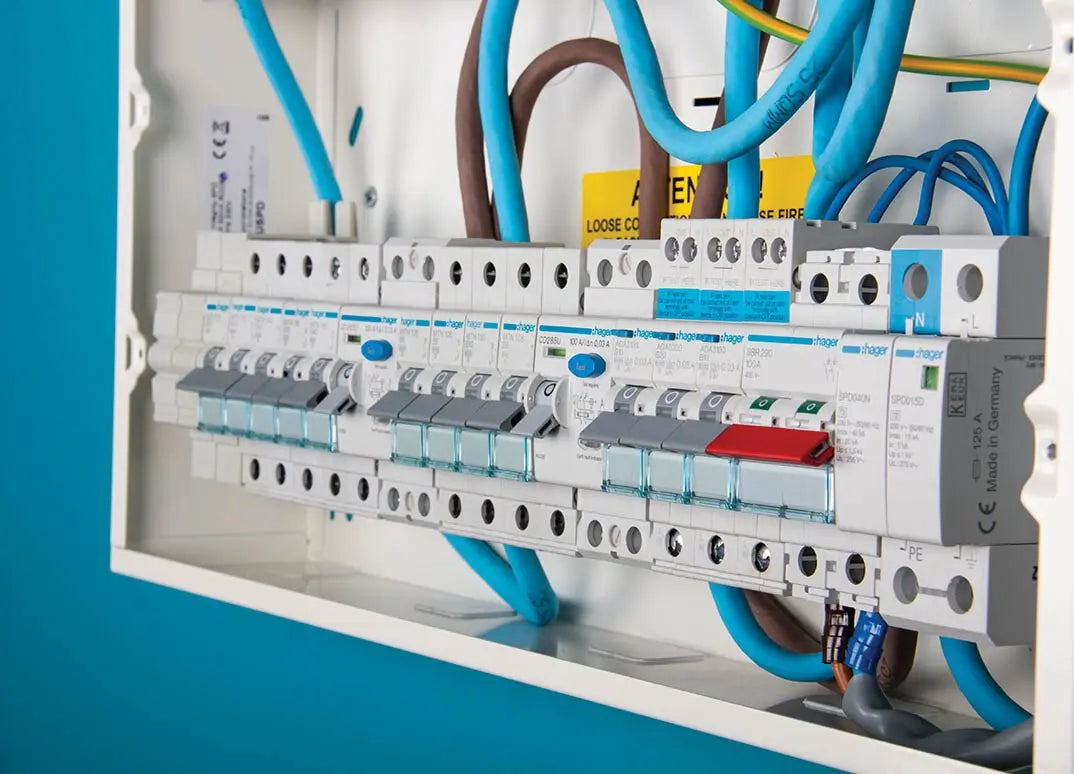

Hager RCCBs/ELCBs installed in a distribution board — genuine Hager installation photography (representative application)
Hager Onekonekt RCCB CDC226J, 25A 2P 30mA front view with blue test button and N terminals UAE
Hager CDC226J Onekonekt 2-pole 25A 30mA Type AC RCCB (ELCB) — official Hager product photo
Hager RCCBs/ELCBs installed in a distribution board — genuine Hager installation photography (representative application)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hager

Hager CDC226J Onekonekt RCCB 25A 2-Pole 30mA Type AC — ELCB

SKU: CDC226J
(0)
AED 119.00 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

Hager CDC226J Onekonekt RCCB 25A 2-Pole 30mA Type AC — ELCB

The Hager Onekonekt RCCB (ELCB) 25A 2-Pole 30mA – CDC226J offers reliable protection against earth leakage currents, safeguarding both people and electrical systems. Part of Hager's Onekonekt modular protection range and engineered to European quality standards, this breaker ensures fast, reliable disconnection to prevent electric shocks and fire hazards on residential and light commercial final circuits.

Key Features

  • Brand: Hager – Onekonekt Series
  • Model: CDC226J
  • Rated Current: 25A
  • Poles: 2P (Double Pole)
  • Sensitivity: 30mA, Type AC
  • Device Type: Residual Current Circuit Breaker (RCCB / ELCB)
  • Ensures personal safety by cutting power during leakage faults
  • Compact design for easy installation in panels and consumer units
  • Built to IEC standards for global compliance

Technical Specifications

Specification Details
Model CDC226J
Range Onekonekt – Hager's unified modular protection range, compatible with Hager single/three-phase busbars
Number of Poles 2P (1P+N)
Rated Current (In) 25 A
Rated Residual Operating Current (IΔn) 30 mA
Residual Current Type AC
Rated Operational Voltage 240 V
Max Operating Voltage 415 V
Rated Insulation Voltage 500 V
Impulse Withstand Voltage 4,000 V
Rated Frequency 50 Hz
Breaking Capacity 1.5 kA (1500 A)
Rated Conditional Short-Circuit Current 6 kA
Dimensions (H x W x D) 83 x 35 x 70 mm
Module Width 2 modules
Mounting DIN rail
Connection Type Screw terminal (BIconnect bottom connection, busbar-compatible)
Conductor Capacity 1–25 mm² solid / 1–16 mm² flexible
Protection Index IP20
Max Altitude 2000 m
Power Loss 2.32 W at rated current
Mechanical Endurance 4000 operations
Electrical Endurance 2000 cycles
Thermal Derating Rated 25 A up to 65°C ambient; derates to 21 A at 70°C

Applications

  • Residential properties (apartments, villas)
  • Offices, shops, and commercial spaces
  • Schools, healthcare facilities, and public buildings
  • Light industrial panels and projects requiring high safety standards

FAQ

  • What's the difference between an MCB and an RCCB/RCD?
    An MCB (Miniature Circuit Breaker) protects a circuit against overload and short-circuit faults. An RCCB (Residual Current Circuit Breaker), also known as an ELCB, continuously monitors for earth leakage current and disconnects the supply if current is escaping to earth – protecting against electric shock and fire in a way an MCB cannot.
  • What does the 30mA sensitivity rating mean?
    30mA is the internationally recognised threshold for personnel protection against electric shock, making the CDC226J suitable for final circuits – sockets, lighting, and general power – where there is direct risk of human contact.
  • How many poles do I need for this circuit?
    This is a 2-pole (2P, 1P+N) device switching both line and neutral, suited to single-phase circuits. Three-phase circuits require a 4-pole equivalent.
  • Can I install this myself?
    No. This is a distribution-board-mounted device and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
  • What is Onekonekt?
    Onekonekt is Hager's unified range of modular protection devices – MCBs, RCCBs, RCBOs, and main switches – designed to fit a common single- or three-phase busbar system with BIconnect terminals, so devices can be wired from cables or fed directly from the busbar, speeding up panel-building and reducing wiring errors.
