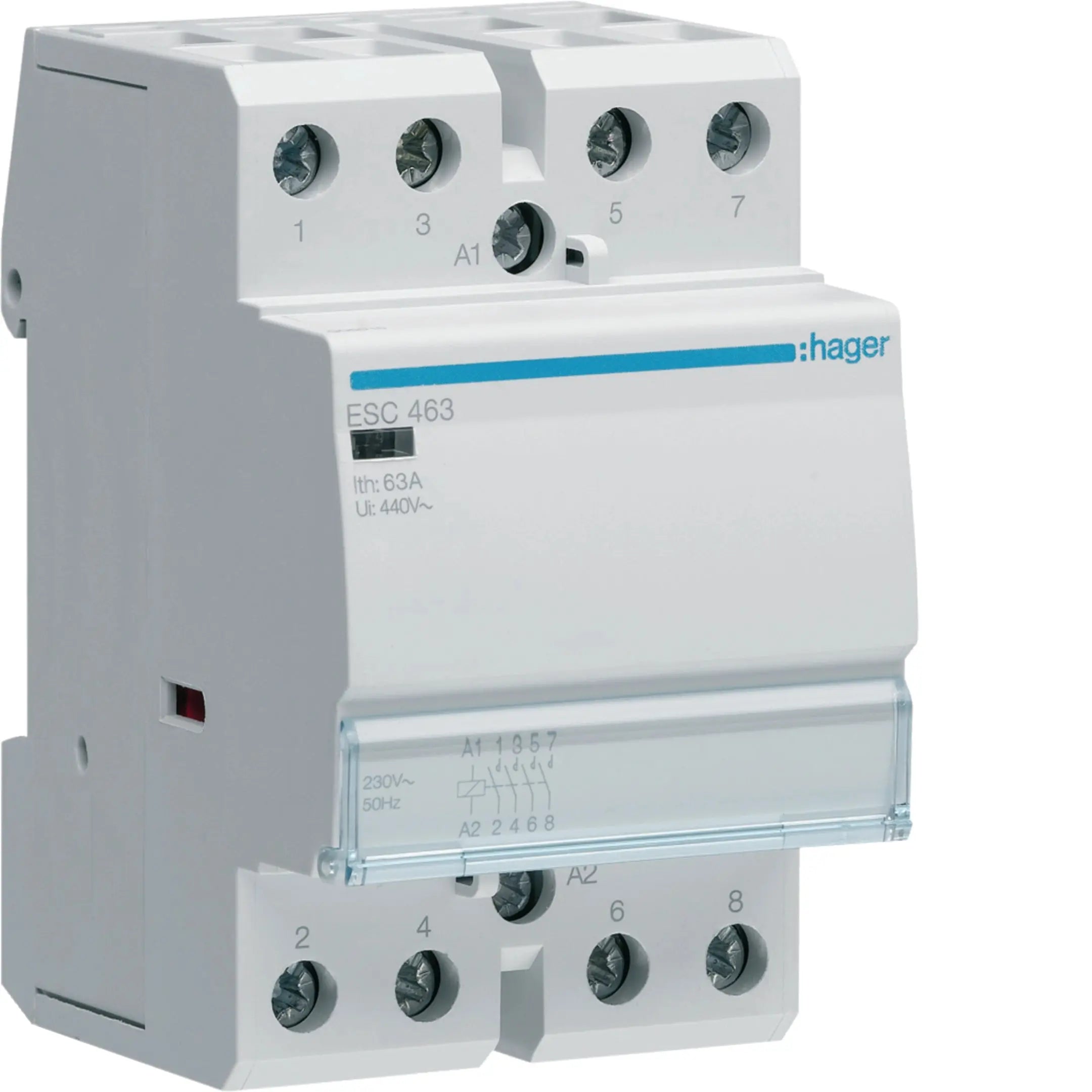

Hager ESC463 63A 4-Pole Installation Contactor 230V AC
The Hager ESC463 is a 63A 4-pole installation contactor with a 230V AC coil for high-current three-phase + neutral load switching in UAE commercial and industrial buildings. Ideal for large lighting, HVAC, and power load management in four-wire panels.
Key Features
- 63A 4-pole installation contactor for 3-phase + neutral high-current switching
- 230V AC 50/60Hz coil
- DIN rail mounting
- Genuine Hager ESC quality
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
ESC463 |
| Article Number |
|
| Rated Current |
63A |
| Poles |
4 |
| Coil Voltage |
230V AC 50/60Hz |
| Mounting |
DIN Rail |
Applications
- High-current four-pole load switching in commercial panels
- Three-phase + neutral HVAC and building services control
- Timer and BMS-controlled four-wire switching
- Commercial and industrial load management
FAQ
-
What is an installation contactor used for?
A contactor switches a circuit remotely or automatically in response to a control signal — commonly used for lighting, heating, or HVAC loads controlled by a time switch, sensor, or building management system, rather than a manual switch.
-
How many poles do I need?
This is a 4-pole, 63A unit. Match the pole count to the circuit being switched — three-phase loads need the corresponding pole count.
-
Can I install this myself?
No — a contactor is wired into a distribution board alongside its control circuit and must be installed by a licensed electrician.
-
Can this be paired with a time switch?
Yes — pairing a contactor with a Hager time switch (e.g. the EHN range) is a common way to give a manually-rated circuit automated, scheduled control without exceeding the time switch's own contact rating.
