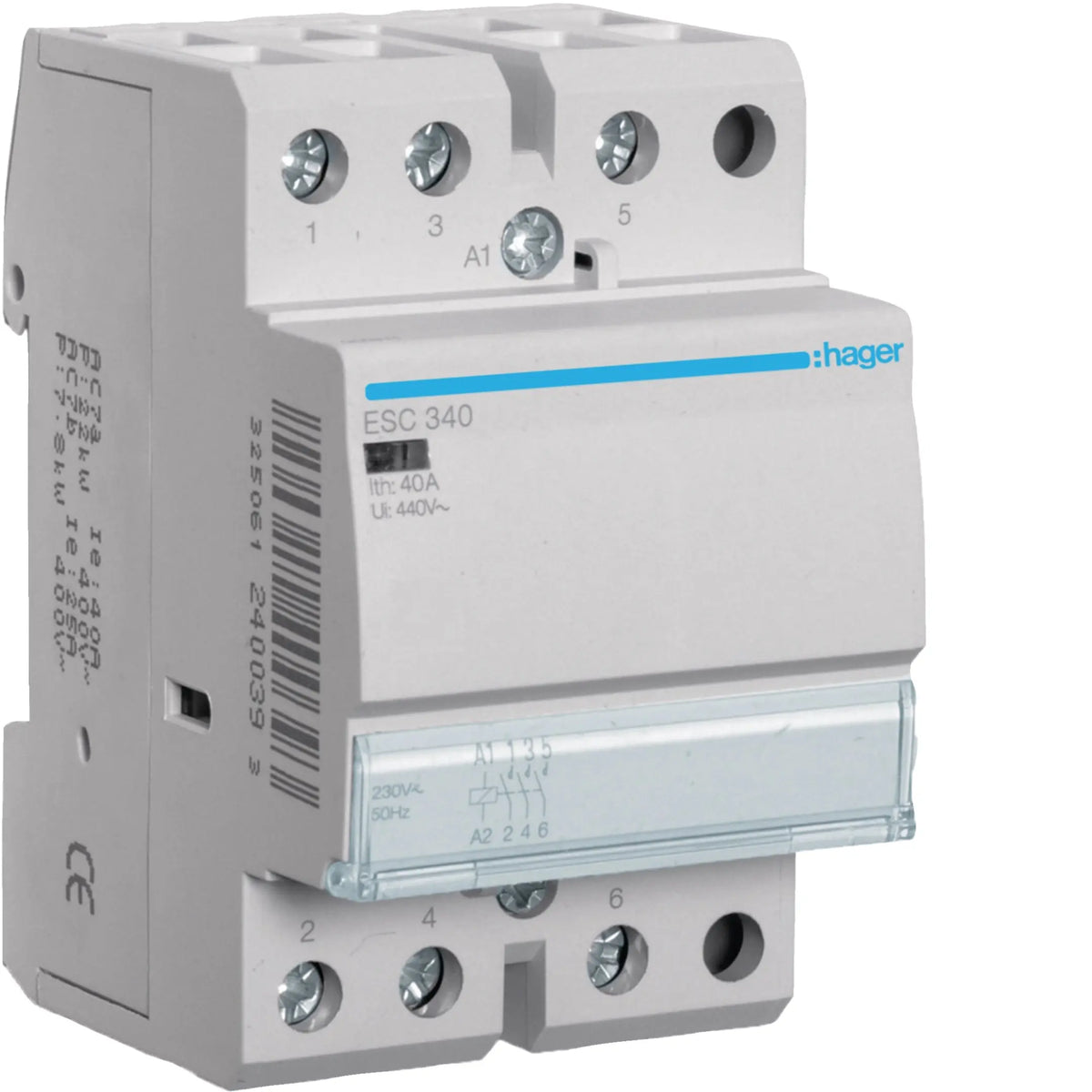

Hager ESC340 40A 3-Pole Installation Contactor 230V AC
The Hager ESC340 is a 40A 3-pole installation contactor with a 230V AC coil for three-phase load switching in UAE commercial and industrial buildings. Suitable for lighting, HVAC, and general three-phase load management from DIN-rail panels.
Key Features
- 40A 3-pole installation contactor for three-phase switching
- 230V AC 50/60Hz coil
- DIN rail mounting
- Genuine Hager quality
Technical Specifications
| Specification |
Details |
| Brand |
Hager |
| Model |
ESC340 |
| Rated Current |
40A |
| Poles |
3 |
| Coil Voltage |
230V AC 50/60Hz |
| Mounting |
DIN Rail |
Applications
- Three-phase lighting and general load control
- Commercial and industrial building services switching
- Timer and BMS-controlled three-phase switching
- HVAC and distribution panel applications
FAQ
-
What is an installation contactor used for?
A contactor switches a circuit remotely or automatically in response to a control signal — commonly used for lighting, heating, or HVAC loads controlled by a time switch, sensor, or building management system, rather than a manual switch.
-
How many poles do I need?
This is a 3-pole, 40A unit. Match the pole count to the circuit being switched — three-phase loads need the corresponding pole count.
-
Can I install this myself?
No — a contactor is wired into a distribution board alongside its control circuit and must be installed by a licensed electrician.
-
Can this be paired with a time switch?
Yes — pairing a contactor with a Hager time switch (e.g. the EHN range) is a common way to give a manually-rated circuit automated, scheduled control without exceeding the time switch's own contact rating.
