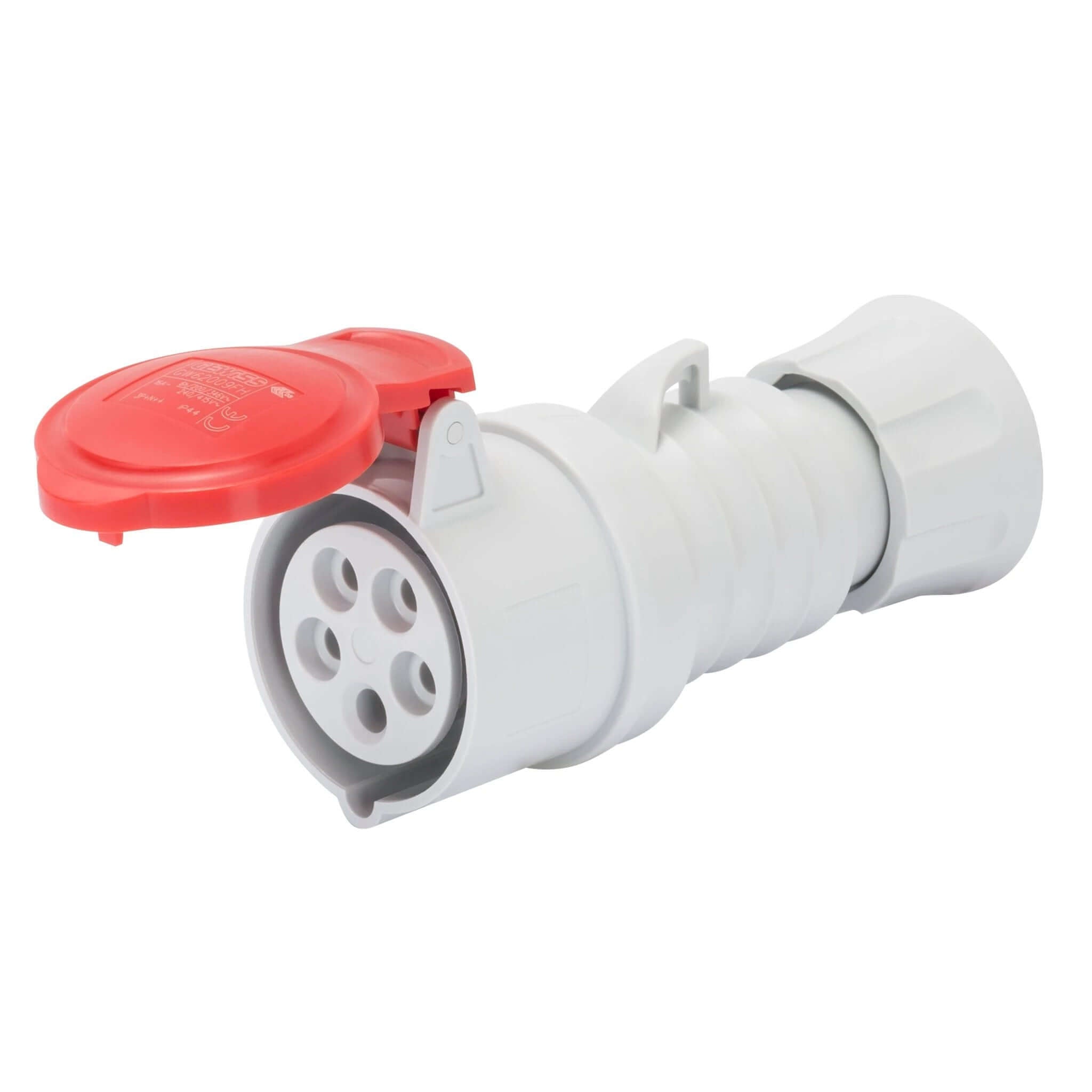

Gewiss GW62020H Industrial Socket 32A 400V 5-Pin 3P+N+E IP44 — Straight Connector

Gewiss GW62020H Straight Connector for secure IEC 309 HP power distribution in harsh UAE environments.

Gewiss GW62020H Straight Connector 32A 3P+N+E – IP44/IP54 Red

Key Features

• Rated Current: 32 A
• Poles: 3P+N+E
• Rated Voltage: 380–415 V AC
• Frequency: 50/60 Hz
• Protection: IP44/IP54 – splash-proof and dust-protected
• Type: Straight Connector (HP Range)
• Hour Position: 6H (red, standard for 400 V)
• Wiring: Screw terminals
• Housing: High mechanical strength technopolymer
• Standards: IEC 60309 compliant
• Weight: ≈ 0.40 kg
• EAN / GTIN: 8011564798366

Technical Specifications

Applications

• Industrial plants and heavy machinery power distribution
• Construction and logistics sites requiring reliable outdoor-rated connections
• Outdoor or semi-outdoor areas in warehousing and facilities across the UAE
• Food & beverage production areas where splash and dust protection are essential

FAQ

• Is this the plug or the connector (in-line socket)?
  This is the connector — the female in-line socket wired onto the end of a flexible cable (extension lead, cable reel, etc.), which mates with a matching male plug. Make sure you're also ordering the matching plug if you don't already have one.
• What does 3P+N+E mean?
  It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• Can I wire this myself?
  Wiring a connector onto a flexible cable is a common competent-person task, but at 32A/400V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
• Is this compatible with standard IEC 60309 plugs?
  Yes — Gewiss HP-series connectors follow the IEC 60309 pin-and-sleeve standard, so they mate with any compliant IEC 60309 plug of the same rating, pole configuration, and colour/hour-position coding, not just other Gewiss products.
