Gewiss GW60004H Industrial Plug 16A 2P+E 230V IP44 — Straight Blue

Rugged Gewiss GW60004H straight plug for industrial power distribution. Built for reliability in harsh environments, this 16A 230V plug from the IEC 309 HP series combines splash resistance with durable construction for demanding jobs across UAE sites.

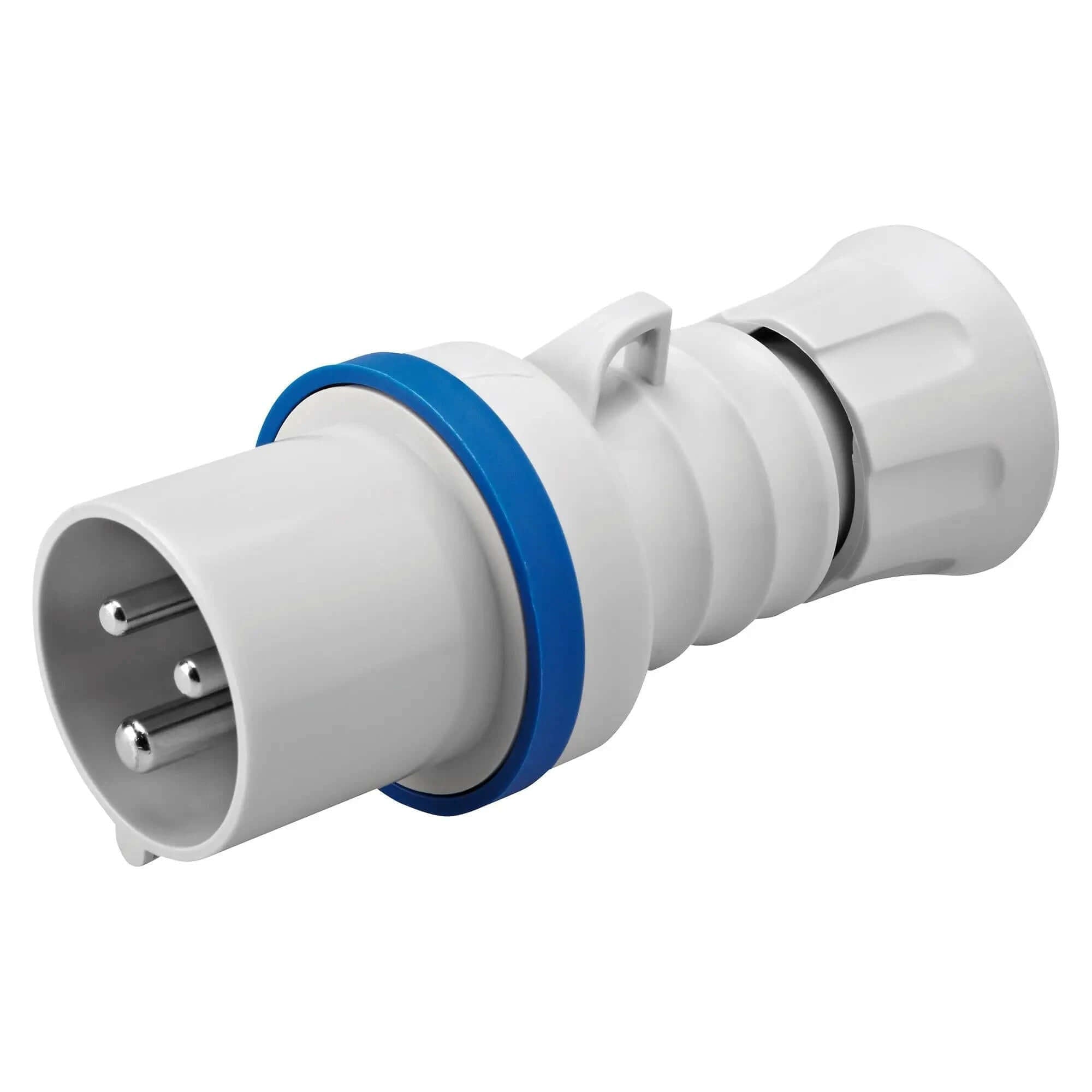

Gewiss GW60004H Straight Plug 16A 2P+E – IP44/IP54, Blue (230V, 6H)

Key Features

• Type: Straight Plug (HP Range)
• Rated Current: 16 A
• Poles: 2P+E
• Rated Voltage: 200–250 V AC (230 V nominal)
• Frequency: 50/60 Hz
• Hour Position: 6H (Blue housing – IEC coding for 230 V)
• Protection: IP44/IP54 splash-proof and dust resistant
• Wiring: Screw terminals
• Housing: High-strength technopolymer; blue 6H IEC coding
• Weight: ≈ 0.124 kg
• Standards: IEC 60309 compliant

Technical Specifications

Applications

• Electrical distribution panels in industrial facilities
• Construction sites and logistics hubs
• Commercial facilities needing splash-proof plugs

FAQ

• Is this the plug or the socket?
  This is the plug (male) — the end that's wired onto the supply cable and inserted into a matching Gewiss socket or connector. Make sure you're also ordering the matching female socket/connector if you don't already have one, since plugs and sockets are sold separately.
• What does 2P+E mean?
  It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• Can I wire this myself?
  Wiring a plug onto a flexible cable is a common competent-person task, similar to fitting a household plug, but at 16A/230V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
• Is this compatible with standard Gewiss/IEC 60309 sockets?
  Yes — Gewiss HP-series plugs follow the IEC 60309 pin-and-sleeve standard (matched by rating, pole configuration, and colour/hour-position coding), so it mates with any compliant IEC 60309 socket of the same rating and configuration, not just other Gewiss products.
