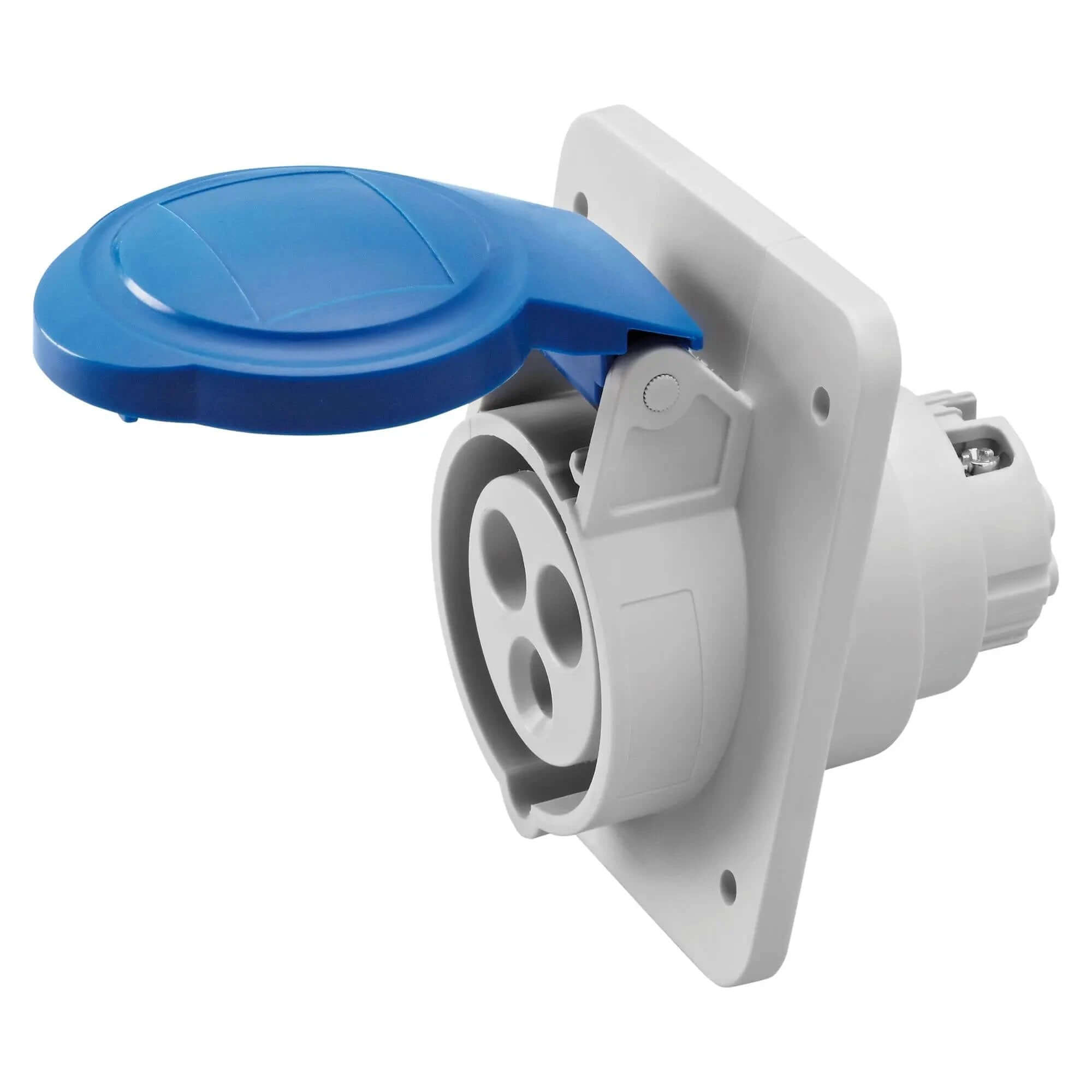

Gewiss GW62216H Industrial Socket 32A 2P+E 230V IP44 — Angled Flush-Mount Blue

Gewiss GW62216H 10° Angled Flush‑Mount Socket Outlet, 32A 230V 3‑Pin (2P+E), IP44 Blue

The Gewiss GW62216H is a robust flush‑mount socket outlet from the HP series. Its 10° angled design simplifies cable entry, ideal for demanding industrial and commercial environments. Rated 32A at 230V with IP44 protection, it delivers a secure, reliable connection for 230V circuits.

Key features

• 10° angled design for easy cable insertion
• Quick Fix system for fast, secure mounting
• Current rating: 32A at 230V
• 3‑pin (2P+E) configuration
• IP44 splash‑proof and dust protection
• Blue color coding (6h) to indicate 230V use
• Screw‑type terminals for a robust connection

Technical specifications

Applications

• Industrial facilities, warehouses and workshops requiring reliable 230V power connections
• Commercial interiors and fit‑outs with splash and dust exposure considerations
• Indoor and semi‑outdoor locations where secure, quick‑connect wiring is beneficial

FAQ

• What does 2P+E mean?
  It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• How is this socket mounted?
  Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
• Can I install this myself?
  No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
