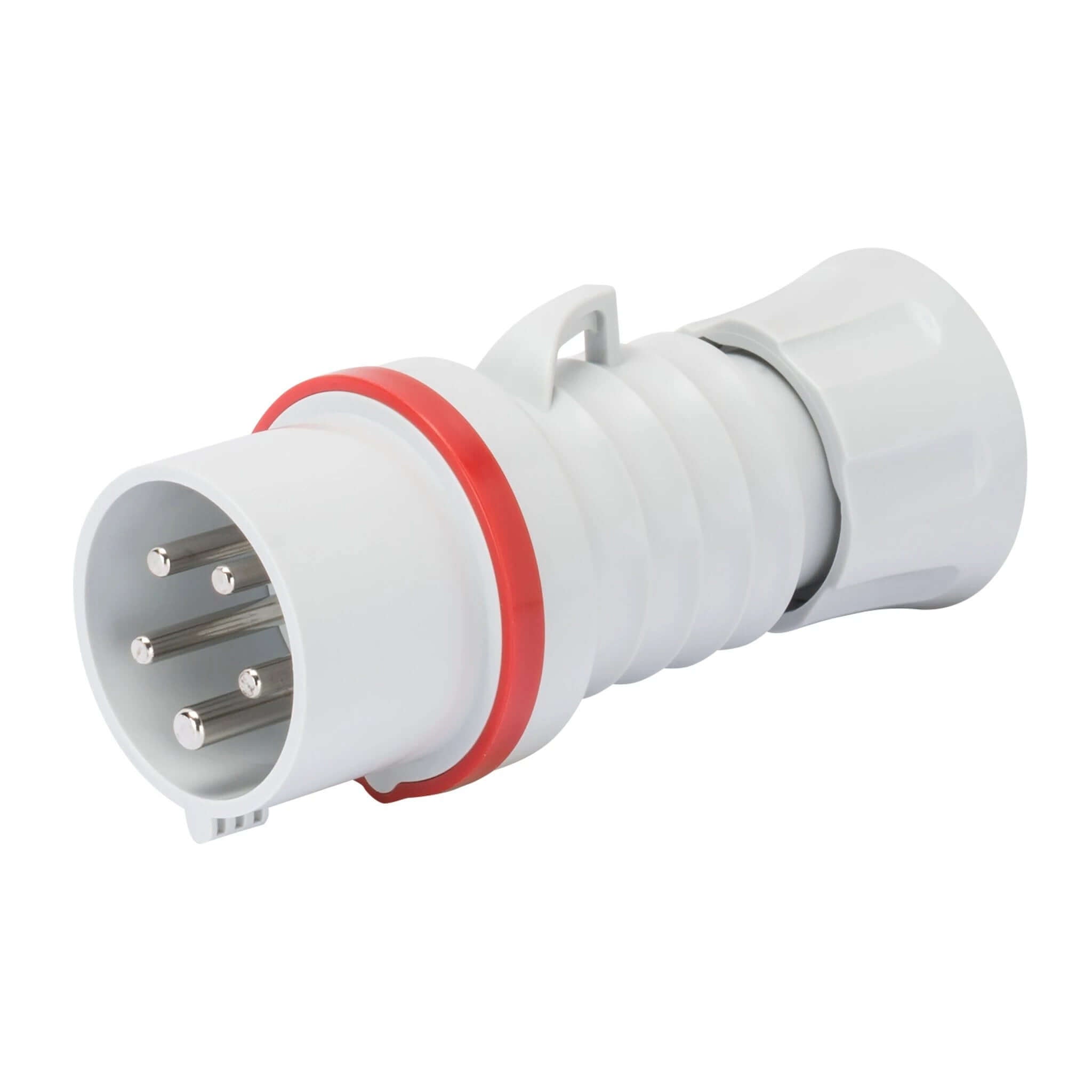

Gewiss GW60020H Industrial Plug 32A 400V 5-Pin 3P+N+E IP44 — Straight Red

The Gewiss GW60020H HP industrial straight plug delivers 32A at 400V (3P+N+E) with IP44/IP54 protection, for UAE industrial and construction sites.

Key Features

• 32A, 400V, 5-pin (3P+N+E)
• IP44/IP54 splash and dust resistant
• Halogen-free technopolymer, screw-type wiring

Technical Specifications

Applications

• Industrial facilities and workshops
• Construction and logistics sites

FAQ

• Is this the plug or the socket?
  This is the plug (male) — the end that's wired onto the supply cable and inserted into a matching Gewiss socket or connector. Make sure you're also ordering the matching female socket/connector if you don't already have one, since plugs and sockets are sold separately.
• What does 3P+N+E mean?
  It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• Can I wire this myself?
  Wiring a plug onto a flexible cable is a common competent-person task, similar to fitting a household plug, but at 32A/400V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
• Is this compatible with standard Gewiss/IEC 60309 sockets?
  Yes — Gewiss HP-series plugs follow the IEC 60309 pin-and-sleeve standard (matched by rating, pole configuration, and colour/hour-position coding), so it mates with any compliant IEC 60309 socket of the same rating and configuration, not just other Gewiss products.
