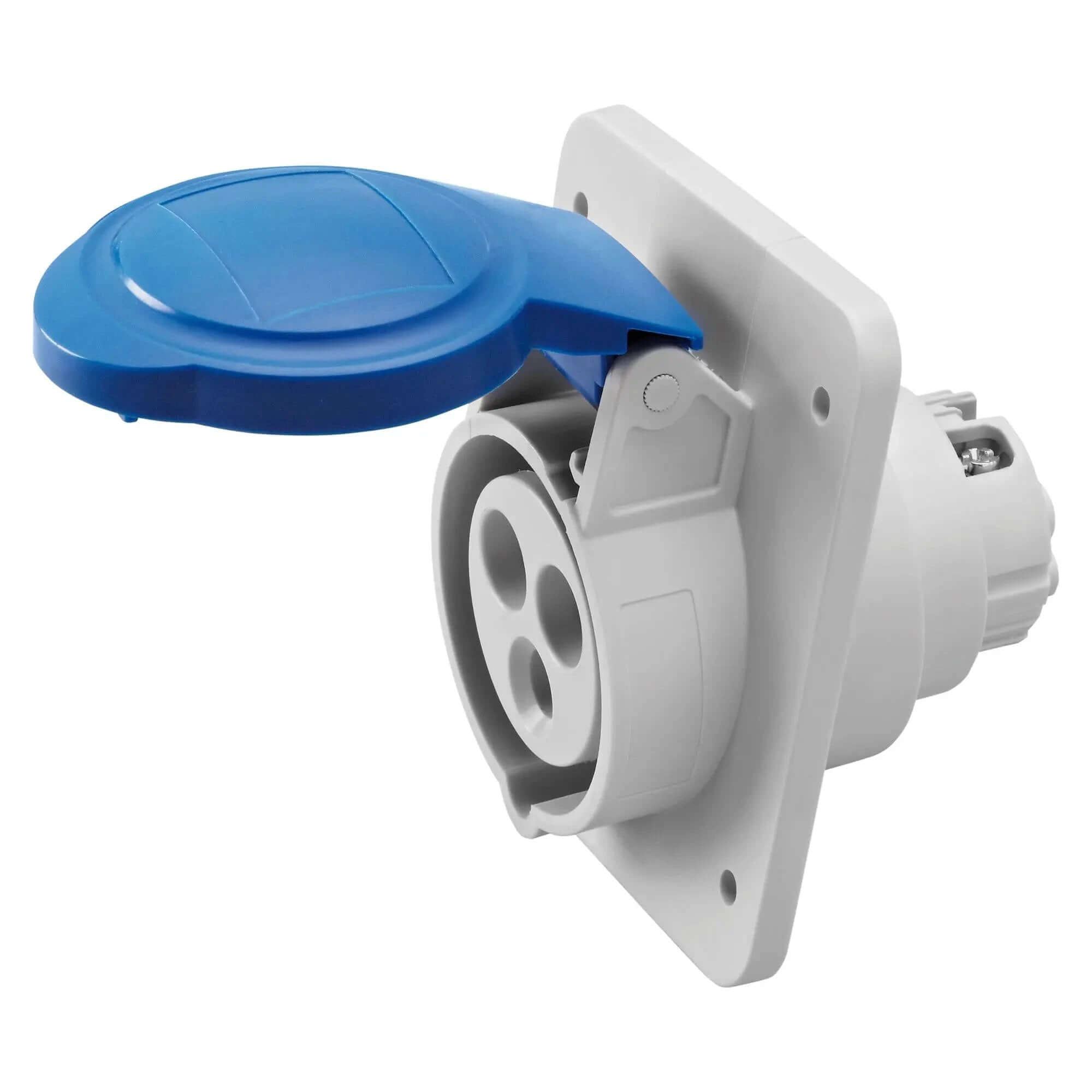

Gewiss GW62205H 10° Angled Flush-Mount Socket Outlet (HP Range) – 16A 2P+E, IP44, Blue
The Gewiss GW62205H delivers reliable 16 A, 230 V power in industrial and commercial UAE environments. Its 10° angled flush-mount design reduces cable strain, while IP44 protection safeguards against splashes and dust. Quick Fix panel-mount enables fast, secure installations on panels and distribution boards.
Key Features
- 16 A, 2P+E socket configuration for 230 V systems
- 10° angled flush-mount design minimizes cable bending and tension
- IP44 splash-proof and dust-resistant enclosure
- Blue housing with IEC 6H coding for 230 V installations
- Wiring via screw terminals; suitable for panel-mount installations
- High-strength technopolymer housing for industrial environments
- HP (IEC) series compatibility; IEC 60309 compliant
- Net weight approx. 0.106 kg
Technical Specifications
| Property |
Specification |
| Brand |
Gewiss |
| Model |
GW62205H |
| Type |
10° Angled Flush-Mount Socket Outlet (HP Range) |
| Rated Current |
16 A |
| Poles |
2P+E |
| Rated Voltage |
200–250 V AC (230 V nominal) |
| Frequency |
50/60 Hz |
| Hour Position |
6H |
| Housing Color |
Blue (IEC 6H coding) |
| Mounting |
Flush panel, 10° angled |
| Wiring |
Screw terminals |
| Protection |
IP44 |
| Housing Material |
High-strength technopolymer |
| Weight |
≈ 0.106 kg (net) |
| Standards |
IEC 60309 compliant |
| EAN/GTIN |
8011564798878 |
Applications
- Industrial workshops and factories requiring robust panel-mounted sockets
- Electrical distribution boards and service panels
- Construction sites and logistics facilities with fixed power distribution
- Commercial facilities needing reliable, weather-protected sockets
FAQ
-
What does 2P+E mean?
It's a 3-pin configuration: line, neutral, and earth — the standard arrangement for single-phase 230V industrial power connections.
-
What does the IP44 rating mean, and is this suitable outdoors?
IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
-
How is this socket mounted?
Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
-
Can I install this myself?
No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
