Gewiss GW62009H Industrial Socket 16A 400V 5-Pin 3P+N+E IP44 — Straight Connector Red

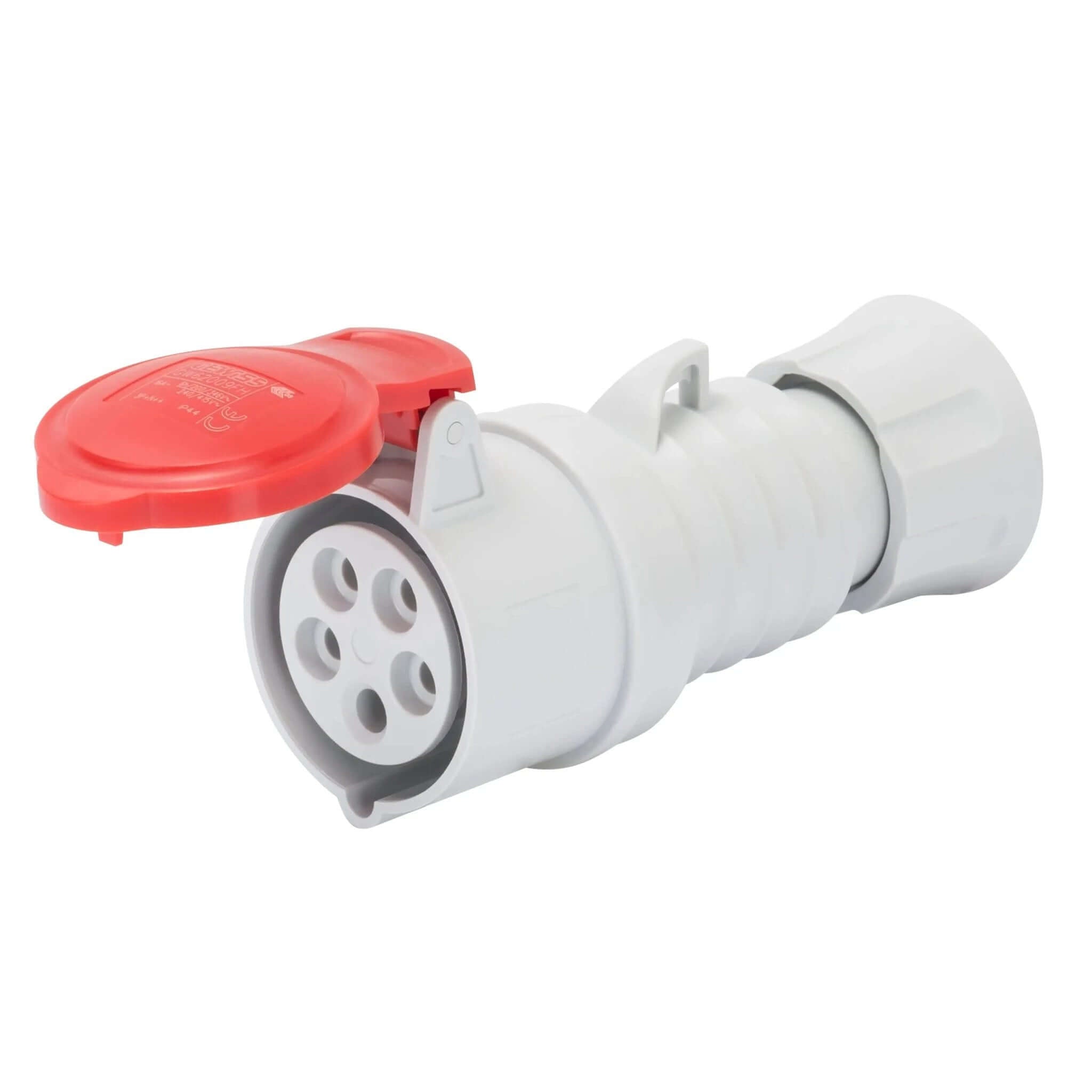

Gewiss GW62009H HP Industrial Straight Connector, 16A 400V, 5-Pin (3P+N+E) – Red

The Gewiss GW62009H HP industrial straight connector is engineered for reliable power links in demanding environments. With a 5‑pin (3P+N+E) configuration, it handles 16A at 400V (380–415V) and features dual IP protection for splash and dust resistance. Screw terminals deliver a secure, maintenance‑friendly connection in harsh UAE job sites.

Key features

• Part Number: GW62009H
• Current rating: 16A
• Voltage: 400V (380–415V)
• Pin configuration: 5-pin (3P+N+E)
• Protection rating: IP44/IP54
• Design: Straight connector
• Material: Halogen-free technopolymer
• Color: Red
• Wiring: Screw-type terminals

Technical specifications

Applications

• Three‑phase industrial machinery and equipment
• Construction site power distribution and workshops
• Manufacturing plant panel assemblies and motor feeders
• Temporary power solutions and mobile plant connections

FAQ

• Is this the plug or the connector (in-line socket)?
  This is the connector — the female in-line socket wired onto the end of a flexible cable (extension lead, cable reel, etc.), which mates with a matching male plug. Make sure you're also ordering the matching plug if you don't already have one.
• What does 3P+N+E mean?
  It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
• What does the IP44 rating mean, and is this suitable outdoors?
  IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
• Can I wire this myself?
  Wiring a connector onto a flexible cable is a common competent-person task, but at 16A/400V voltage the terminations must be secure and correctly torqued — if you're not confident working with industrial power connectors, have a licensed electrician do it.
• Is this compatible with standard IEC 60309 plugs?
  Yes — Gewiss HP-series connectors follow the IEC 60309 pin-and-sleeve standard, so they mate with any compliant IEC 60309 plug of the same rating, pole configuration, and colour/hour-position coding, not just other Gewiss products.
