The Gewiss GW62210H is a 16A, 400V (3P+N+E) flush‑mount socket outlet from the HP series, built for demanding industrial and commercial environments. Its 10° angled body aids cable entry while maintaining a compact, secure installation. Red color coding enhances 400V system recognition and safety.

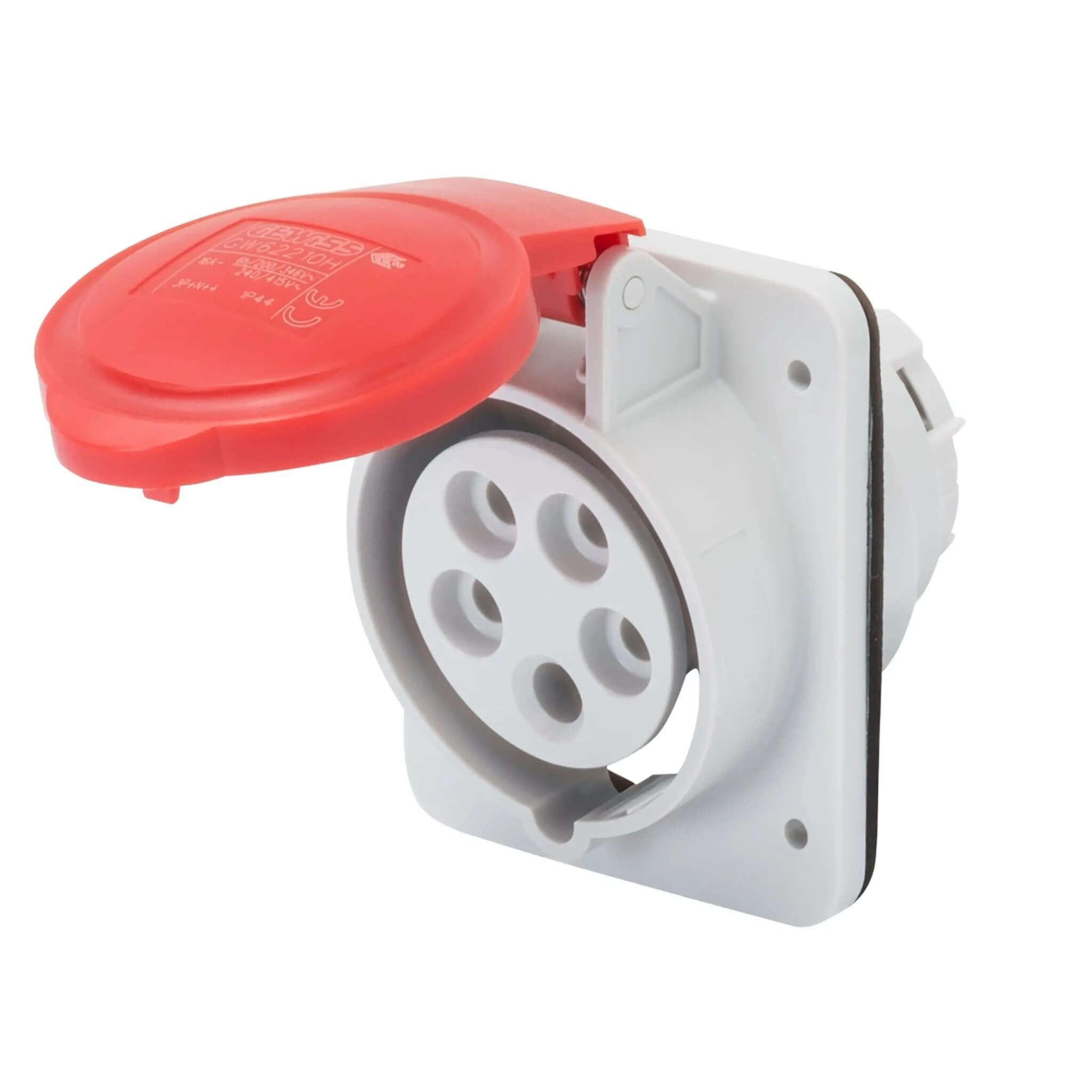

Gewiss GW62210H 10° Angled Flush-Mount Socket Outlet
Key Features
- Current rating: 16A; Voltage: 400V (380–415V); 5‑pin (3P+N+E) configuration
- IP44 protection for splash and dust resistance
- 10° angled flush‑mount design for neat installations and easier cabling
- Halogen‑free technopolymer body in red for clear system identification
- Screw‑type terminals for secure wiring
- Durable HP series construction for long service life
Technical Specifications
| Spec |
Details |
| Part Number |
GW62210H |
| Current Rating |
16A |
| Voltage |
400V (380–415V) |
| Pin Configuration |
5-pin (3P+N+E) |
| Protection Rating |
IP44 |
| Design |
10° Angled, Flush‑Mount |
| Material |
Halogen-free technopolymer |
| Color |
Red |
| Wiring |
Screw‑type terminals |
Applications
- Industrial machinery connections and control panels
- Commercial facilities and workshops requiring robust 400V outlets
- Warehouses and logistics hubs needing secure, splash‑resistant power points
- Semi‑outdoor or protected indoor environments with splash risk
FAQ
-
What does 3P+N+E mean?
It's a 5-pin configuration carrying all 3 phases, a neutral, and an earth — used for three-phase 400V power distribution to equipment that needs a neutral (as opposed to 3P+E, which has no neutral).
-
What does the IP44 rating mean, and is this suitable outdoors?
IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
-
How is this socket mounted?
Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
-
Can I install this myself?
No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
