Designed for tough industrial environments in the UAE, the Gewiss GW66009 interlocked socket outlet delivers reliable, safe power distribution with IEC 60309 compliance.

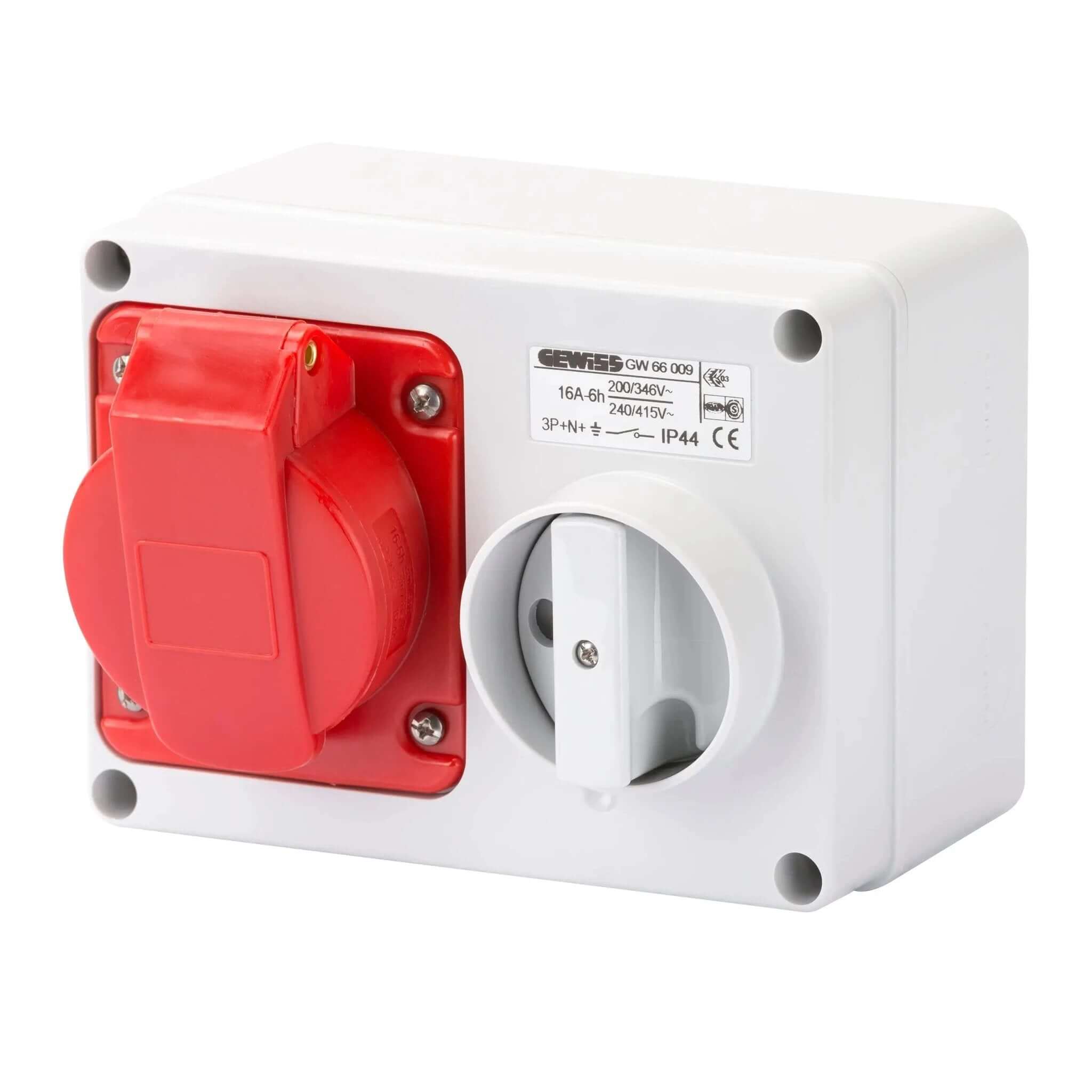

Gewiss GW66009 Horizontal Interlocked Socket Outlet 16A 3P+E – IP44
Reliable interlocked connection for demanding sites. The GW66009 interlocked outlet ensures the plug can only be removed when the unit is switched off, reducing the risk of accidental disconnection in busy workshops, construction zones, and warehouses.
Key Features
- Interlocked 3P+E socket, 16A rating for robust industrial use
- IP44 protection with dust resistance and splash protection for harsh environments
- Bottom entry, fixed interlocked design for durable, hands-free operation
- Voltage range: 380-415V AC, 50/60 Hz
- Hour Position: 6H (standard alignment) for consistent installations
- Material: high-strength technopolymer housing in Grey/Blue Gewiss industrial finish
- Weight: approximately 0.95 kg
- IEC 60309 compliance for global and UAE-standard electrical installations
Technical Specifications
| Specification |
Details |
| Brand |
Gewiss |
| Model |
GW66009 |
| Type |
Fixed Interlocked Horizontal Socket Outlet |
| Poles |
3P+E |
| Rated Current |
16 A |
| Rated Voltage |
380-415 V AC |
| Frequency |
50/60 Hz |
| Hour Position |
6H |
| Protection |
IP44 |
| Interlock |
Yes (safe connection/disconnection) |
| Entry |
Bottom |
| Material |
Technopolymer housing |
| Color |
Grey/Blue |
| Weight |
≈ 0.95 kg |
| Compliance |
IEC 60309 |
| EAN/GTIN |
8011564017933 |
Applications
- Industrial sites and workshops
- Construction sites
- Warehouses and logistics centers
- Commercial kitchens, food processing areas
FAQ
-
What does "interlocked" mean on this socket?
An interlocked socket has a mechanical or electrical lock that only allows the plug to be inserted or removed when the socket's isolating switch is in the OFF position — preventing anyone from plugging or unplugging equipment while it's live. This is typically required by site safety rules for higher-current industrial connections.
-
What does the IP44 rating mean, and is this suitable outdoors?
IP44 means it's protected against solid objects larger than 1mm and splashing water from any direction — suitable for outdoor use and damp site conditions, but not for full immersion or direct jetting/hosing down. Check the enclosure is fitted correctly (cover closed, gland sealed) to maintain the rating in practice.
-
How is this socket mounted?
Check the product title/Technical Specifications for the exact mounting style — flush-mount sockets are recessed into a panel or wall, surface-mount sockets are fixed to the wall/enclosure face, and interlocked sockets are typically panel-mounted with an integral isolating switch.
-
Can I install this myself?
No. This is a fixed socket outlet wired into a permanent electrical installation or distribution board, and should be installed and connected by a licensed electrician in accordance with UAE wiring regulations.
