ABB

ABB 10A 100mA 1P+N - DSE201 M C16 AC100 RCBO

SKU: DSE201 M C16
(0)
AED 104.00 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

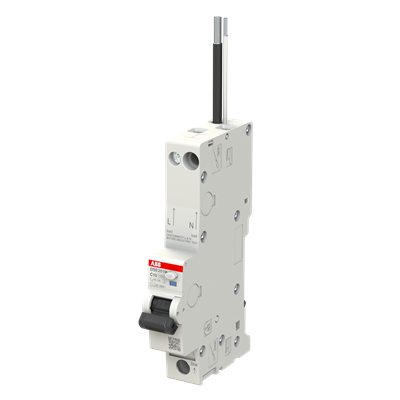

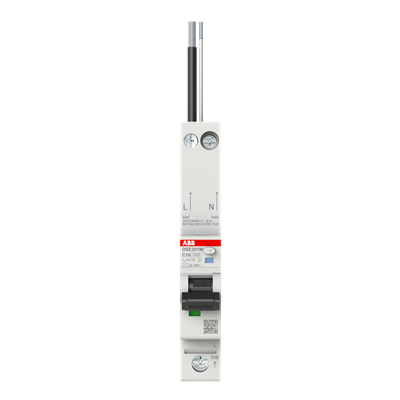

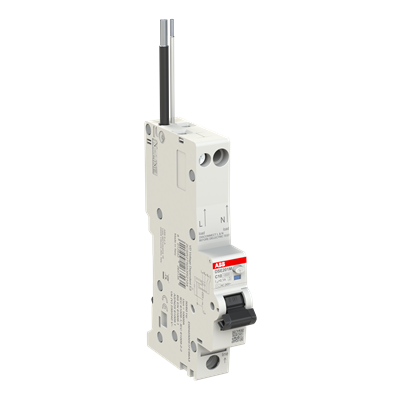

ABB DSE201 M 1P+N RCBO 10A 100mA

The DSE201 M C10 AC100 is a 1P+N electronic residual current circuit breaker with overcurrent protection (RCBO) in a compact one-module width, combining overload and short-circuit protection with residual current protection against earth fault currents in a single device. Featuring Type AC sensitivity for sinusoidal alternating earth fault currents and Type C tripping for overload protection, it is designed for single-phase end-user circuits in residential and commercial UAE distribution boards where combined overcurrent and earth leakage protection is required in minimal panel space.

Key Features

  • Combined overcurrent and residual current protection in a single 1-module-wide device, saving distribution board space
  • 10A Type C overcurrent protection paired with 100mA Type AC residual current sensitivity
  • Protection against indirect contacts and additional protection against direct contacts
  • Unswitched neutral with flying lead connections for neutral and functional earth, simplifying installation
  • Genuine ABB quality

Technical Specifications

Specification Details
Brand ABB
Model DSE201 M C10 AC100
Poles 1P+N
Rated Current (In) 10A
Tripping Characteristic Type C
Rated Residual Current 100 mA
Residual Current Type Type AC
Rated Ultimate Breaking Capacity (Icu) 15 kA
Rated Short-Circuit Capacity 10 kA
Rated Operational Voltage 230/240V AC
Rated Insulation Voltage (Ui) 500V
Mounting DIN Rail
Degree of Protection Terminals IP20 / Housing IP40
Operating Temperature -25°C to +55°C
Net Weight 200 g

Applications

  • Combined overcurrent and earth leakage protection for single-phase end-user circuits
  • Residential distribution boards requiring compact, space-saving RCBO protection
  • Commercial circuit protection where indirect and direct contact protection is required
  • Retrofit upgrade from separate MCB and RCCB to a single combined device in UAE installations

FAQ

  • What is an RCBO, and how is it different from an MCB or RCCB?
    An RCBO (Residual Current Breaker with Overcurrent protection) combines an MCB and an RCCB in one device — it protects a single circuit against both overload/short-circuit and earth leakage, instead of needing separate devices.
  • What does the 100mA sensitivity rating mean?
    100mA RCBOs are sized for fire and equipment protection rather than personal shock protection, which requires 30mA.
  • Why use an RCBO instead of a shared RCCB for multiple circuits?
    An RCBO protects one circuit only, so a leakage fault on that circuit trips just that RCBO rather than a shared RCCB covering several circuits — this avoids losing power to unaffected circuits when a fault occurs on one.
  • Can I install this myself?
    No. RCBOs are wired into a live distribution board and must be installed by a licensed electrician in line with UAE wiring regulations.
