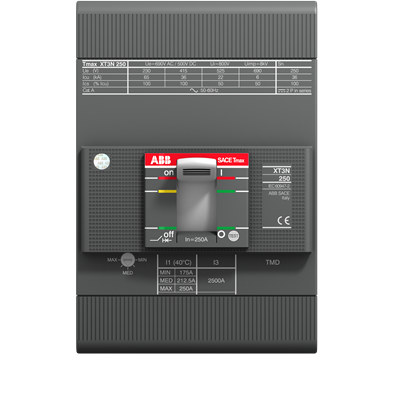

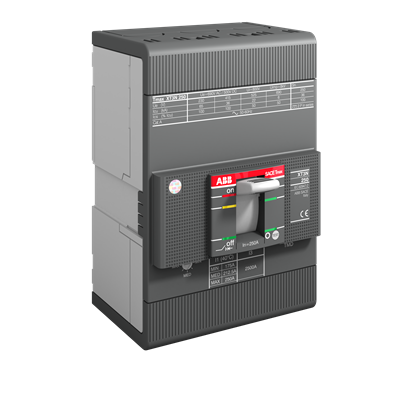

ABB XT3N 250 TMD 3-Pole 250A Moulded Case Circuit Breaker
The ABB XT3N 250 TMD is a fixed three-pole moulded case circuit breaker from the SACE Tmax XT series, fitted with front terminals and a thermomagnetic (TMD) release adjustable across 175-250A. Rated for 690V AC operation with a 36kA breaking capacity at 415V, it is well suited for main and distribution protection duties in UAE commercial and industrial low voltage panels.
Key Features
- Adjustable thermomagnetic TMD release with rated current setting range of 175-250A for flexible protection coordination
- Rated ultimate short-circuit breaking capacity (Icu) of 36kA at 415V AC and 50kA at 220-240V AC, suitable for high fault-level UAE installations
- Front terminal bolt connection with fixed mounting, designed for compact panel and switchboard installation
- AC/DC current type rated up to 690V AC or 500V DC, supporting a wide range of distribution and industrial applications
- Genuine ABB quality — manufactured to IEC 60947-2 standard
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
XT3N 250 TMD 250-2500 3p F F |
| Poles |
3P |
| Rated Current (In) |
250A |
| Setting Range |
175-250A |
| Release Type |
TMD (Thermomagnetic) |
| Rated Instantaneous Short-Circuit Setting (Ii) |
2500A |
| Breaking Capacity (Icu at 415V AC) |
36kA |
| Breaking Capacity (Icu at 690V AC) |
5kA |
| Rated Operational Voltage |
690V AC / 500V DC |
| Rated Insulation Voltage (Ui) |
800V |
| Rated Impulse Withstand Voltage (Uimp) |
8kV |
| Terminal Connection |
Front, Bolt type |
| Mounting |
Fixed |
| Standard |
IEC 60947-2 |
| Weight |
1.7 kg |
Applications
- Main incomer protection in low voltage distribution boards for commercial buildings
- Feeder and sub-distribution protection in industrial panels and switchboards
- Motor and installation protection in facilities with high fault-current levels
- Panel builder projects requiring adjustable thermomagnetic protection settings
