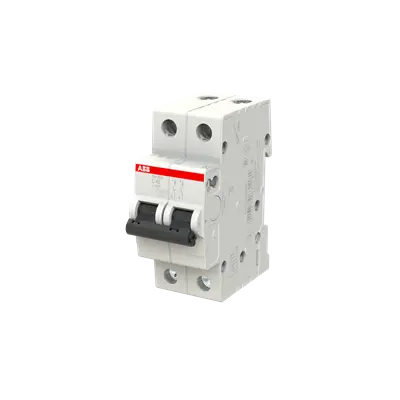

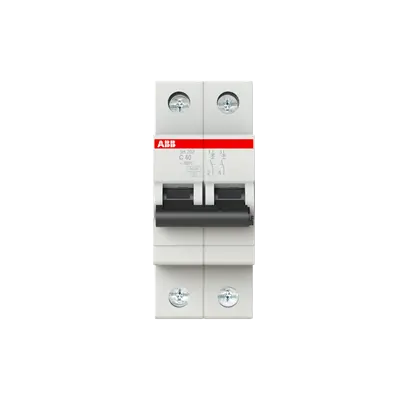

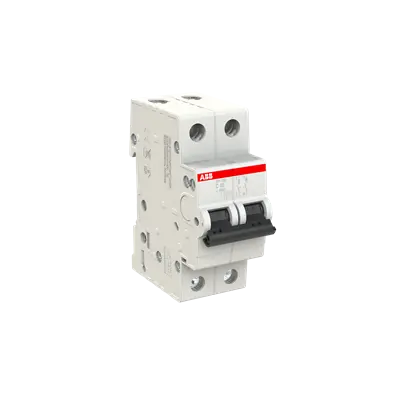

The ABB Double Pole Miniature Circuit Breaker 40A DP MCB C SH202-C40 (2CDS212001R0404) delivers reliable overcurrent and short-circuit protection for residential, commercial, and light industrial electrical systems. Compact and easy to install, it suits panel boards and distribution boards in UAE projects.
Key Features
- Double pole design (2P) for enhanced protection of both active and neutral paths
- 40 A current rating suitable for moderate to heavy loads in UAE installations
- C Curve, 6 kA breaking capacity for fast interruption of faults
- Compact footprint: 8.5 × 3.5 × 6.9 cm for easy panel fit
- Operating voltage up to 400 V
- Manufactured by ABB, SH202-C40 | part 2CDS212001R0404
Technical Specifications
| Specification |
Value |
| Manufacturer |
ABB |
| Model |
SH202-C40 |
| Part Number |
2CDS212001R0404 |
| Type |
Double Pole Miniature Circuit Breaker (MCB) |
| Current Rating |
40 A |
| Breaking Capacity |
6 kA |
| Curve |
C |
| Voltage Rating |
400 V |
| Dimensions (L × W × H) |
8.5 × 3.5 × 6.9 cm |
Applications
- Residential distribution boards and small commercial panels
- Protection for motors and lighting circuits in UAE installations
- Backup protection in automation and control circuits
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
-
What does the Type C tripping curve mean?
Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
-
What does the 6kA breaking capacity mean?
6kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
-
How many poles do I need?
A 2-pole (2P) breaker switches both live and neutral together, giving full isolation on a single-phase circuit.
-
Is this MCB compatible with other ABB DIN-rail distribution boards?
Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
-
Can I install this myself?
No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
