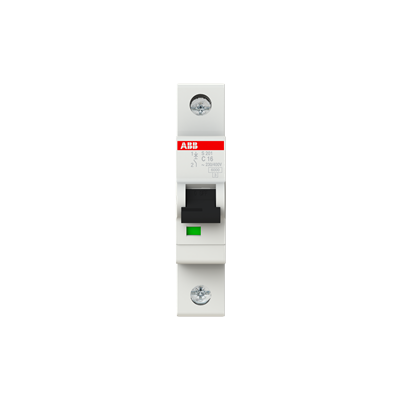

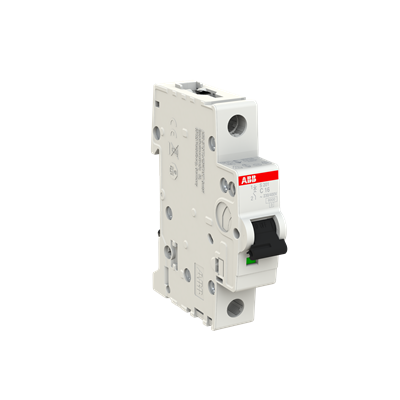

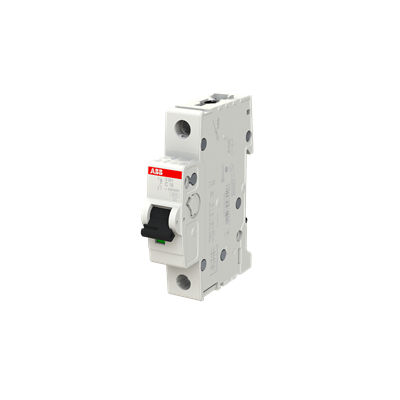

ABB S201-C16 1-Pole 16A 6kA Type C MCB
The ABB S201-C16 is a 1-pole 16A Type C miniature circuit breaker with 6kA breaking capacity from the ABB S200 series. Designed for protection of single-phase circuits in residential and commercial distribution boards, it is one of the most widely used MCBs in UAE building installations for lighting and power circuit protection.
Key Features
- 1-pole 16A Type C MCB for single-phase lighting and power circuit protection
- 6kA breaking capacity for standard UAE residential and commercial installation fault levels
- Type C tripping characteristic suitable for resistive and lightly inductive loads
- Compact DIN rail mounting for distribution board installation
- Genuine ABB S200 series quality — consistent performance and reliability
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
S201-C16 |
| Rated Current |
16A |
| Poles |
1 |
| Tripping Characteristic |
Type C |
| Rated Short-Circuit Capacity |
6kA (AC/DC) |
| Rated Ultimate Breaking Capacity (Icu) |
20kA (133V AC) / 10kA (230V AC) |
| Rated Operational Voltage |
230V AC |
| Rated Insulation Voltage (Ui) |
440V |
| Mounting |
DIN Rail (TH35-15 / TH35-7.5) |
| Degree of Protection |
IP20 (IP40 with enclosure/cover) |
| Operating Temperature |
-25°C to +55°C |
| Mechanical Endurance |
20,000 cycles |
| Net Weight |
0.115 kg |
Applications
- Single-phase lighting circuit protection in residential DBs
- Power and socket circuit protection in commercial distribution boards
- General building services circuit protection in UAE installations
- Consumer unit and distribution board MCB replacement
FAQ
-
What's the difference between an MCB and an MCCB?
An MCB (miniature circuit breaker) is typically rated up to 100A with a fixed, non-adjustable trip and lower breaking capacity, used for final circuits. An MCCB (moulded case circuit breaker) is built for higher currents and fault levels, and is used for main incomers, sub-mains, and feeder protection where an MCB's rating or breaking capacity would be insufficient.
-
When do I need an MCCB instead of an MCB?
Use an MCCB where the prospective fault current or load current exceeds what an MCB is rated to handle safely — typically at the main incomer or major sub-main level of a commercial or industrial distribution board.
-
How many poles do I need?
This is a 1-pole device, sized for the corresponding single or three-phase supply arrangement.
-
Does this MCCB have an adjustable trip setting?
Check the specific trip unit type in the Technical Specifications table above — thermal-magnetic MCCBs may have a fixed or adjustable trip range depending on the model; an electronic trip unit typically offers configurable protection curves.
-
Can I install this myself?
No. MCCBs are installed in distribution boards and panels by a licensed electrician, in line with UAE wiring regulations.
