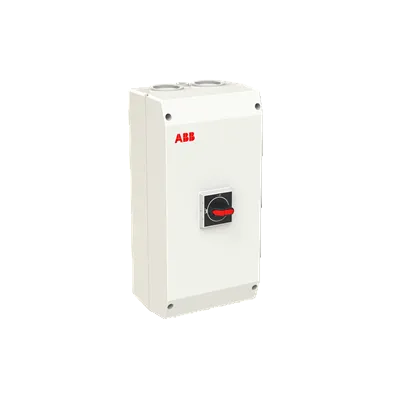

ABB OTP1003BM Enclosed Switch Disconnector

SKU: OTP1003BM
(0)
AED 435.50 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB OTP100B3M Enclosed Switch Disconnector

The OTP100B3M is a 3-pole enclosed switch disconnector rated at 80A, housed in a rigid glass-reinforced polycarbonate enclosure with IP65 protection. Built for both indoor and outdoor use, it offers reliable local isolation with a padlockable selector handle and defeatable interlocked cover, suited to the dust and heat conditions typical of UAE outdoor installations.

Key Features

  • 3-pole switch disconnector rated 80A (AC-23A) with fixed neutral and PE terminal for 5-wire system installations
  • IP65-rated glass-reinforced polycarbonate enclosure, UV protected, suitable for outdoor and indoor mounting
  • Padlockable selector handle accommodating up to three padlocks, with defeatable interlocked cover for thermographic inspection
  • Threaded cable entries with knock-out holes for 2 parallel cables plus one control cable, top and bottom
  • Genuine ABB quality — impact-resistant housing rated IK08

Technical Specifications

Specification Details
Brand ABB
Model OTP100B3M
Number of Poles 3P
Rated Operational Current (Ie) AC-23A 80A (380–415V)
Rated Operational Voltage 750V (main circuit)
Rated Insulation Voltage (Ui) 750V
Rated Operational Power AC-23A (400V) 37kW
Rated Short-Circuit Making Capacity (Icm) 3.6kA at 690V
Rated Short-Time Withstand Current (Icw) 2.5kA for 1s
Degree of Protection IP65 (IEC 60529)
Impact Resistance IK08
Enclosure Material Glass-reinforced polycarbonate
Handle Type Selector, padlockable (up to 3 padlocks), black
Neutral Type Fixed neutral
Cable Cross-Section 10 – 70 mm²
Cable Entry Position Top/Bottom, 2xM50+M16 per side
Terminal Type Screw terminals
Tightening Torque 6 N·m
Standards IEC 60947-1, IEC 60947-3
Net Weight 2.2 kg
Dimensions (W x H x D) 200 x 400 x 140 mm
Note Product nearing end-of-life; ABB replacement model is OTP80GB3M

Applications

  • Local isolation for HVAC units, pumps, and outdoor machinery in commercial and industrial sites
  • Main isolation switch for external distribution boards exposed to UAE outdoor conditions
  • Safe isolation point for maintenance on rooftop and plant room equipment
  • Feeder isolation in FM-managed facilities requiring IP65-rated enclosures

FAQ

  • Is this an MCB or an isolator?
    It's an isolator (switch-disconnector), not an MCB. It has no overload or short-circuit protection — it only provides a manual on/off disconnect, and should be paired with separate MCBs or RCCBs for circuit protection.
  • Where should this isolator be installed?
    Typically as the main incoming switch or a local isolation point ahead of the MCBs/RCCBs in a distribution board, so the whole board (or a section of it) can be isolated for maintenance without needing to trip individual breakers.
  • Can I install this myself?
    No. This is trade-only distribution board equipment and must be installed and connected by a licensed electrician in accordance with local wiring regulations.
  • Can this isolator be used to switch a live circuit under load?
    Isolators rated for on-load switching can do this within their utilisation category, but check the specific AC rating in the Technical Specifications table — an isolator is not a protective device and should not substitute for a circuit breaker.
