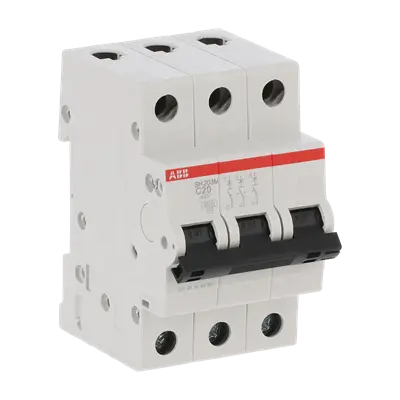

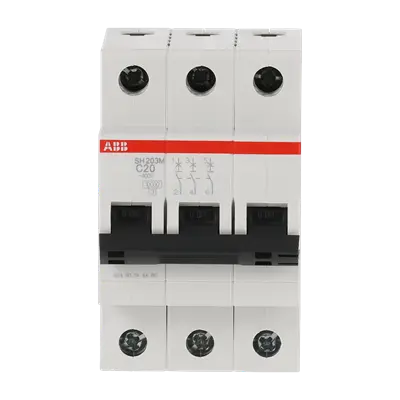

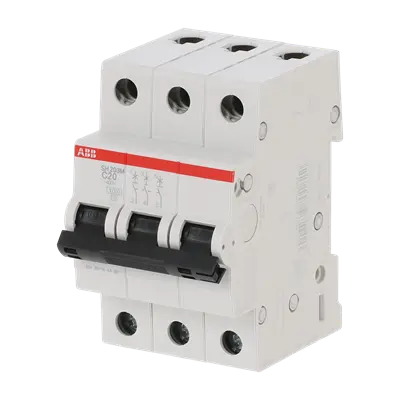

ABB Miniature Circuit Breaker 20A 3 Pole 10KA SH203M-C20
Reliable ABB protection for miniature installations with a 20 A rating, three poles, and a 10 kA breaking capacity. Compact, easy to install, and built for demanding UAE electrical environments.
Key Features
- Three-pole (3P) configuration for multi-phase circuit protection
- Rated current: 20 A with 10 kA breaking capacity (Icn) at 400 V AC
- Type C tripping curve for general-purpose overload and short-circuit protection
- Dual trip mechanism: delayed thermal (overload) and electromagnetic (short-circuit)
- Complies with IEC/EN 60898-1
- DIN-rail mounting (TH35-7.5 / TH35-15 per IEC 60715)
Key Details
-
Brand: ABB
-
Model: SH203M-C20
-
Current Rating: 20 Amps
-
Breaker Type: Standard
-
Poles: 3
-
Breaking Capacity: 10 kA
-
Manufacturer: ABB
Technical Specifications
| Parameter |
Value |
| Brand |
ABB |
| Model |
SH203M-C20 |
| Current Rating |
20 A |
| Breaker Type |
Standard |
| Poles |
3 |
| Breaking Capacity |
10 kA |
| Manufacturer |
ABB |
Applications
- Residential distribution boards
- Commercial electrical panels
- Light industrial control circuits
FAQ
-
What's the difference between an MCB and an RCCB/RCD?
An MCB (miniature circuit breaker) protects wiring and connected equipment against overload and short-circuit current. An RCCB/RCD protects against earth leakage by monitoring current imbalance. The two are complementary and are normally installed together in a distribution board.
-
What does the Type C tripping curve mean?
Type C trips at 5–10x rated current, giving enough headroom for motors, transformers, and ballast/LED-driver inrush without nuisance tripping.
-
What does the 10kA breaking capacity mean?
10kA is the maximum fault current this MCB can safely interrupt without damage. It should be equal to or higher than the prospective fault current at its installation point in the board.
-
How many poles do I need?
A 3-pole (3P) breaker switches all three phases on a three-phase circuit without a switched neutral.
-
Is this MCB compatible with other ABB DIN-rail distribution boards?
Yes — it's a standard DIN-rail (EN 60715) mounted breaker and clips directly into ABB's modular consumer units and distribution boards alongside other ABB DIN-rail devices.
-
Can I install this myself?
No. This is a distribution board component and must be installed and connected by a licensed electrician in accordance with UAE wiring regulations — it is not a DIY consumer product.
