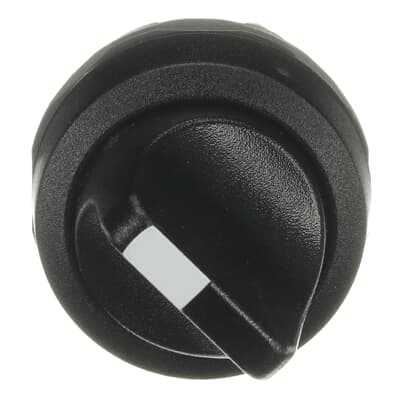

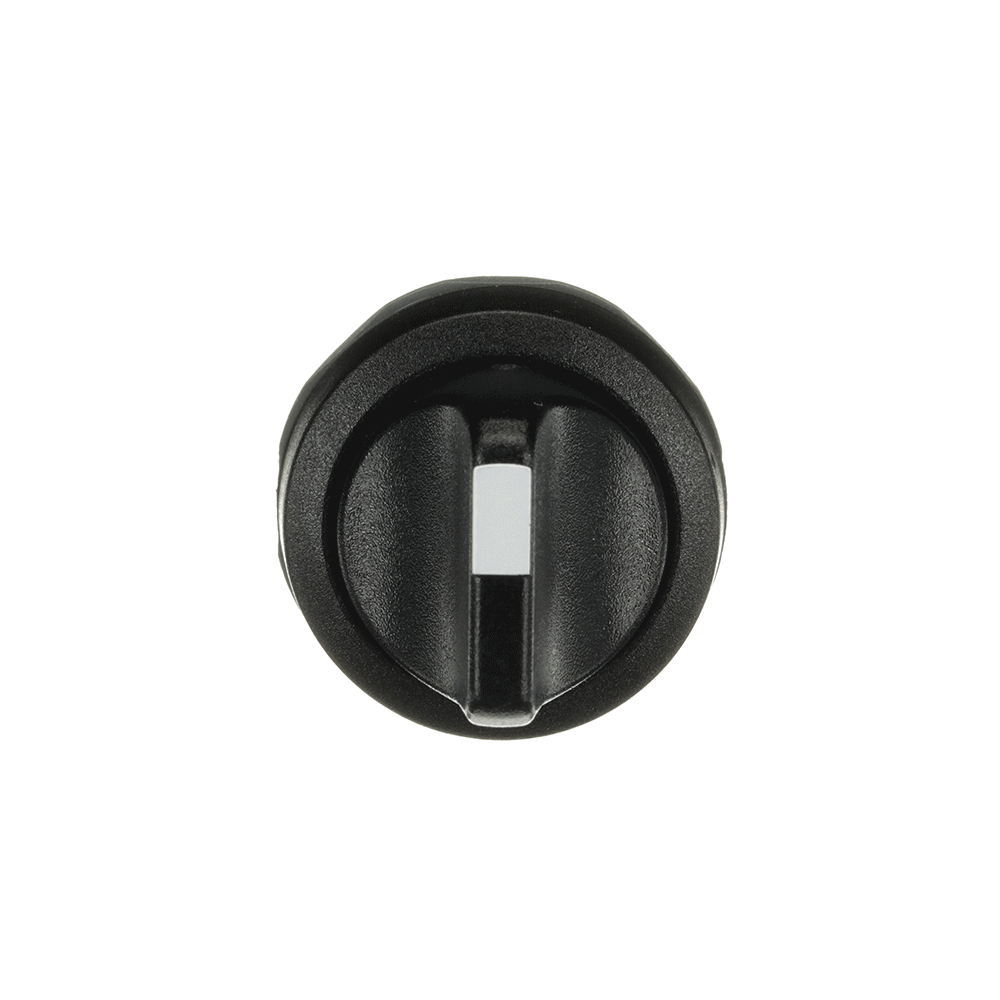

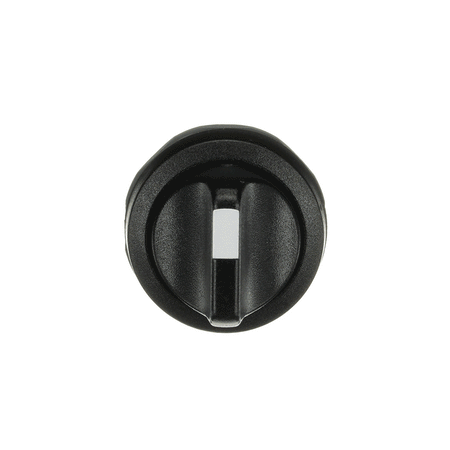

ABB M2SS2-10B 2-Position Selector Switch
The M2SS2-10B is a 2-position, maintained-action selector switch from ABB's modular plastic pilot device range, finished in black with a short handle and non-illuminated design. Featuring self-cleaning contacts and IP66 front protection, it is built for reliable, low-maintenance operation in control panels and distribution boards across the UAE, including in dusty or humid environments.
Key Features
- 2-position maintained selector switch with short handle for compact panel layouts
- IP66-rated front protection for reliable operation in harsh or dusty environments
- Self-cleaning contacts reduce maintenance requirements and increase equipment uptime
- Tool-free, quick installation for fast assembly during panel builds
- Genuine ABB quality — 0.5 million operations mechanical durability
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
M2SS2-10B |
| Function |
Maintained |
| Sub-Function |
2-position |
| Maintained Positions |
A, C |
| Color |
Black |
| Illumination |
Non-illuminated |
| Bezel Material |
Plastic |
| Degree of Protection |
Front IP66 |
| Mechanical Durability |
0.5 million operations |
| Ambient Operating Temperature |
-25 to +70°C |
| Enclosure Type (NEMA) |
Type 1, 12, 13, 3R, 4, 4X |
| Net Weight |
0.024 kg |
| Dimensions (W x H x D) |
48 x 30 x 55 mm |
| Note |
Contact block not included — order separately |
Applications
- Mode selection switching on control panels for HVAC, pumps, and industrial machinery
- Manual/automatic selection in motor control centers and distribution boards
- Operator interface for equipment requiring 2-position switching in commercial and industrial settings
- Panel builds requiring high-durability pilot devices in UAE's demanding ambient conditions
FAQ
-
What is this accessory used for?
It's a genuine ABB DIN-rail/panel accessory used alongside compatible ABB switchgear (breakers, contactors, enclosures) — check the Technical Specifications table for the exact compatible device range.
-
Is this compatible with other ABB equipment I already have?
Genuine ABB accessories are designed for ABB's own matching device ranges — confirm the exact series/model compatibility in the product's Technical Specifications before ordering, since accessory ranges are model-specific.
-
Can I fit this myself?
Simple panel accessories like pilot lamps and selector switches can often be fitted by a competent person, but anything involving live wiring or a distribution board should be done by a licensed electrician in line with UAE wiring regulations.
-
Does this come with the base device or is it sold separately?
This is sold as a standalone accessory — check the listing and your existing equipment to confirm it's the add-on rather than the complete base unit.
