ABB KSE380TPN Enclosed Switch Disconnector

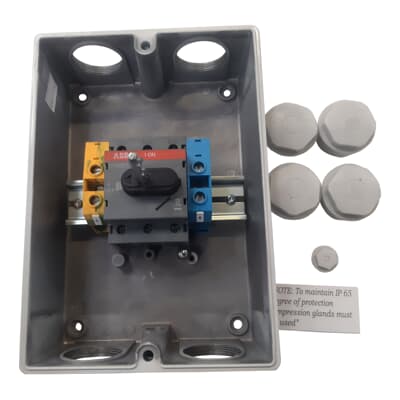

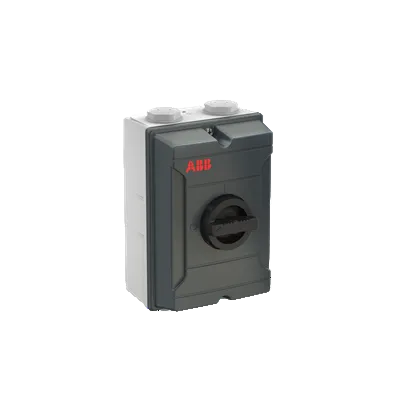

The KSE380TPN is a 3-pole enclosed switch disconnector rated at 75A, housed in a rigid die-cast aluminium (silumin) enclosure with IP65 protection and polyester coating for corrosion resistance. Built for harsh environments, it offers reliable local isolation with a padlockable round handle and interlocked cover, well suited to outdoor and industrial installations across the UAE.

Key Features

  • 3-pole switch disconnector rated 75A (AC-23A) with fixed neutral and PE terminal included
  • IP65-rated die-cast aluminium enclosure with polyester coating, well protected from corrosion in harsh environments
  • Padlockable round handle with two padlocks, interlocked cover, and option to padlock in the On position
  • Grommet-type cable glands included for IP54 sealing, with EMC compatibility when used with EMC cable glands
  • Genuine ABB quality — impact-resistant housing rated IK08

Technical Specifications

Specification Details
Brand ABB
Model KSE380TPN
Number of Poles 3P
Rated Operational Current (Ie) AC-23A 75A (380–415V)
Rated Operational Voltage 750V (main circuit)
Rated Insulation Voltage (Ui) 750V
Rated Operational Power AC-23A (400V) 37kW
Rated Conditional Short-Circuit Current 13kA
Rated Short-Circuit Making Capacity (Icm) 2.1kA at 690V
Rated Short-Time Withstand Current (Icw) 1.5kA for 1s
Degree of Protection IP65 (IEC 60529)
Impact Resistance IK08
Enclosure Material Aluminium (silumin), polyester coated
Handle Type Round, padlockable, black
Neutral Type Fixed neutral
Cable Cross-Section 1.5 – 35 mm²
Cable Entry Position Top/Bottom, 2xM40 per side
Terminal Type Screw terminals
Tightening Torque 2 N·m
Standards IEC 60947-1, IEC 60947-3
Net Weight 1.75 kg
Dimensions (W x H x D) 160 x 230 x 118 mm
Note Product nearing end-of-life; ABB replacement model is KSE380GTPN

Applications

  • Local isolation for HVAC units, pumps, and outdoor machinery in commercial and industrial sites
  • Main isolation switch for external distribution boards exposed to UAE outdoor conditions
  • Safe isolation point for maintenance on rooftop and plant room equipment
  • Feeder isolation in FM-managed facilities requiring IP65-rated, corrosion-resistant enclosures

FAQ

  • Is this an MCB or an isolator?
    It's an isolator (switch-disconnector), not an MCB. It has no overload or short-circuit protection — it only provides a manual on/off disconnect, and should be paired with separate MCBs or RCCBs for circuit protection.
  • Where should this isolator be installed?
    Typically as the main incoming switch or a local isolation point ahead of the MCBs/RCCBs in a distribution board, so the whole board (or a section of it) can be isolated for maintenance without needing to trip individual breakers.
  • Can I install this myself?
    No. This is trade-only distribution board equipment and must be installed and connected by a licensed electrician in accordance with local wiring regulations.
  • Can this isolator be used to switch a live circuit under load?
    Isolators rated for on-load switching can do this within their utilisation category, but check the specific AC rating in the Technical Specifications table — an isolator is not a protective device and should not substitute for a circuit breaker.
