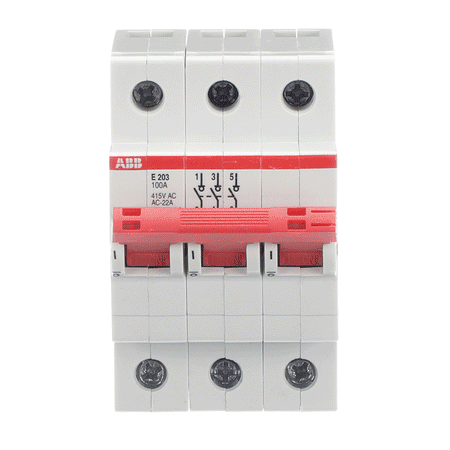

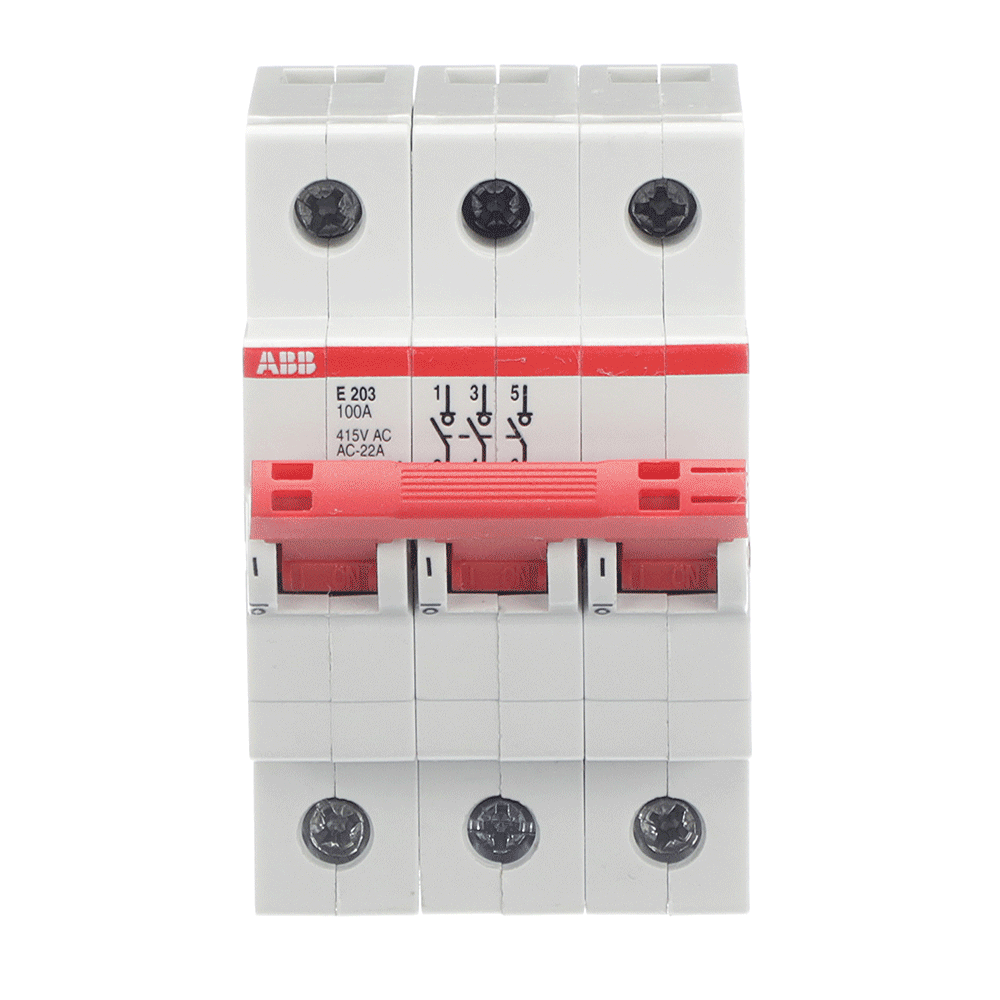

ABB Isolator E203/100R 3-Pole 100A Rail Mount
The ABB E203/100R is a 3-pole 100A rail-mounting modular isolation switch for three-phase distribution boards and commercial switchgear panels. Providing safe main incoming or sub-main isolation in UAE commercial and light industrial buildings, it offers clear switching indication and DIN rail integration.
Key Features
- 100A 3-pole modular rail-mounting isolator
- DIN rail mounting for DB and panel integration
- Clear ON/OFF switching indication
- Suitable as main incoming or sub-main isolator
- Genuine ABB E200 series quality
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
E203/100R |
| Article Number |
2CDE283001R0100 |
| Rated Current |
100A |
| Poles |
3 |
| Type |
Modular Isolation Switch |
| Voltage |
415V AC |
| Mounting |
DIN Rail |
Applications
- Three-phase distribution board main incoming switch
- Sub-main isolator in commercial DBs
- Panel incoming isolation in industrial switchgear
- FM and maintenance isolation replacement
FAQ
-
Is this an MCB or an isolator?
It's an isolator (switch-disconnector), not an MCB. It has no overload or short-circuit protection — it only provides a manual on/off disconnect, and should be paired with separate MCBs or RCCBs for circuit protection.
-
What does 3-pole mean for this isolator?
3-pole means it switches all three phases on a three-phase supply.
-
Where should this isolator be installed?
Typically as the main incoming switch or a local isolation point ahead of the MCBs/RCCBs in a distribution board, so the whole board (or a section of it) can be isolated for maintenance without needing to trip individual breakers.
-
Can I install this myself?
No. This is trade-only distribution board equipment and must be installed and connected by a licensed electrician in accordance with local wiring regulations.
-
Can this isolator be used to switch a live circuit under load?
Isolators rated for on-load switching can do this within their utilisation category, but check the specific AC rating in the Technical Specifications table — an isolator is not a protective device and should not substitute for a circuit breaker.
