ABB E2.2N 1600 Ekip Dip LSIG Air Circuit Breaker

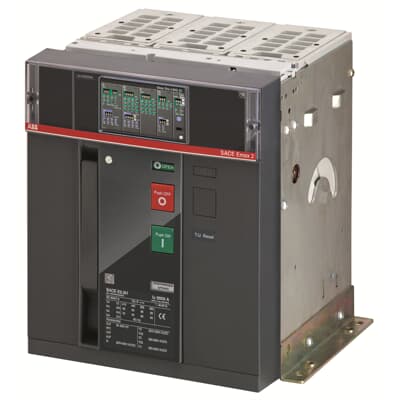

The E2.2N 1600 is a fixed three-pole air circuit breaker from ABB's SACE Emax 2 range, rated at 1600A with a solid-state Ekip Dip LSIG electronic release for comprehensive protection functions. Fitted with 4 auxiliary contacts and breaker position (open/closed) indication, it is engineered for main protection and switching duties in large commercial and industrial low voltage switchboards across the UAE.
Key Features
- 3-pole air circuit breaker with 1600A rated current, suitable for main incomer and bus-tie applications
- Ekip Dip LSIG electronic release providing Long-time, Short-time, Instantaneous, and Ground fault protection functions
- 66kA rated ultimate and service breaking capacity (Icu/Ics) at up to 690V, with 100% Ics/Icu ratio for maximum protection continuity
- Fitted with 4 auxiliary contacts and breaker position (open-closed) indication for panel monitoring and automation integration
- Genuine ABB quality — 25,000 mechanical operating cycles and rear horizontal terminal connections for fixed installation
Technical Specifications
| Specification |
Details |
| Brand |
ABB |
| Model |
E2.2N 1600 Ekip Dip LSIG 3P F HR |
| Number of Poles |
3P |
| Rated Current (In) |
1600A |
| Rated Uninterrupted Current (Iu) |
1600A |
| Release Type |
Ekip Dip LSIG (electronic) |
| Rated Operational Voltage |
690V AC |
| Rated Insulation Voltage (Ui) |
1000V AC |
| Rated Impulse Withstand Voltage (Uimp) |
12kV |
| Rated Ultimate Breaking Capacity (Icu) at 415V |
66kA |
| Rated Service Breaking Capacity (Ics) |
66kA (100% of Icu) |
| Rated Short-Time Withstand Current (Icw) |
66kA for 1s / 50kA for 3s |
| Auxiliary Contacts |
4, plus breaker position (open-closed) indication |
| Terminal Connection Type |
Rear flat horizontal, bolt terminals |
| Tightening Torque |
70 N·m |
| Suitable for IT Networks |
Yes, up to 690V |
| Standards |
IEC 60947-2 |
| Mechanical Durability |
25,000 operations |
| Electrical Durability |
12,000 operations (≤440V) |
| Net Weight |
41 kg |
| Dimensions (W x H x D) |
276 x 371 x 270 mm |
Applications
- Main incomer protection and switching in large low voltage switchboards
- Bus-tie and generator breaker applications in commercial and industrial power distribution
- Main protection for transformer-fed distribution systems requiring advanced electronic trip functions
- Critical infrastructure and data center power distribution across the UAE requiring high breaking capacity and remote monitoring
