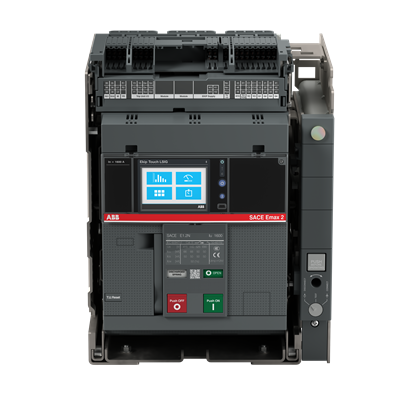

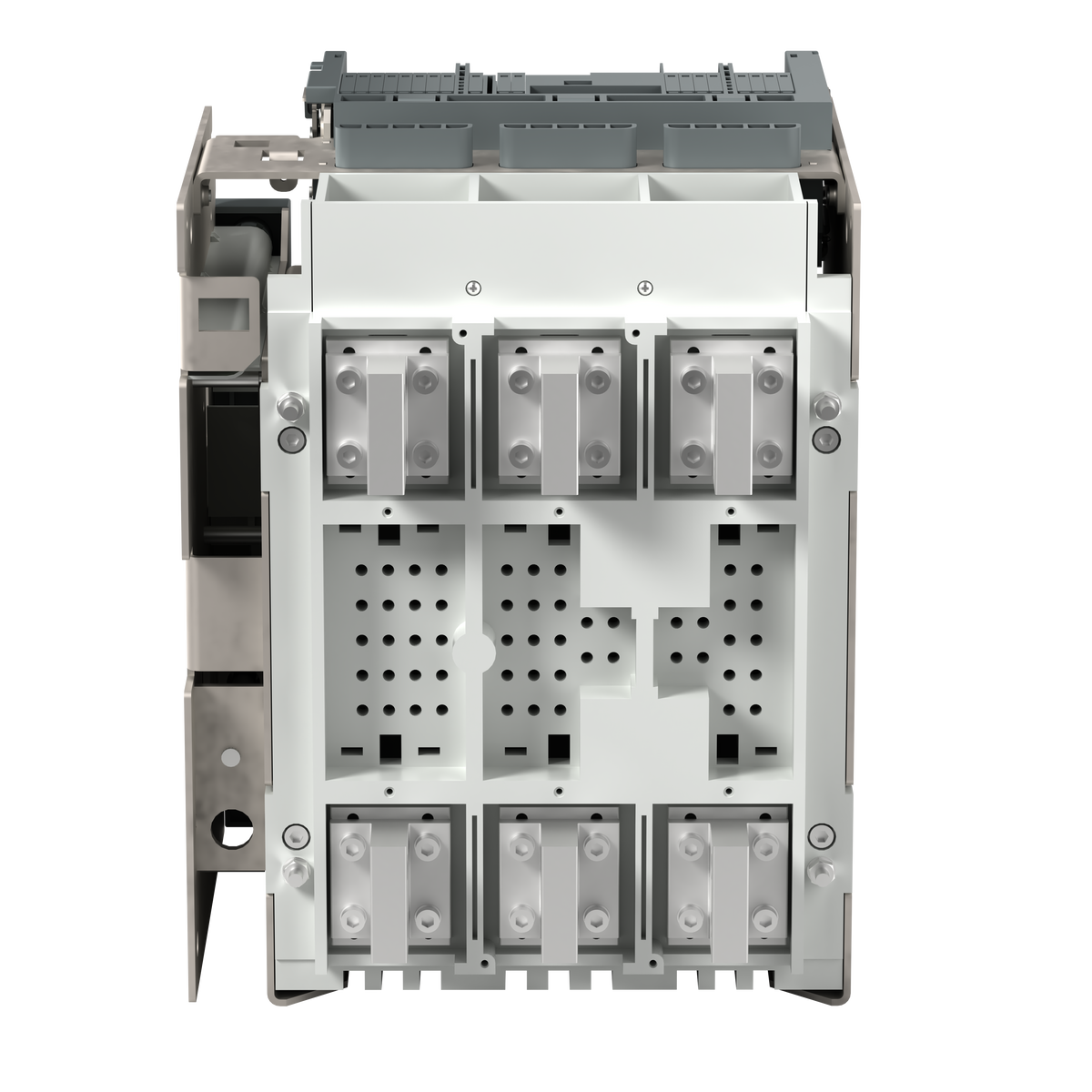

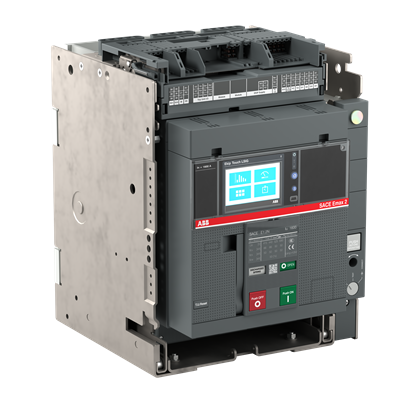

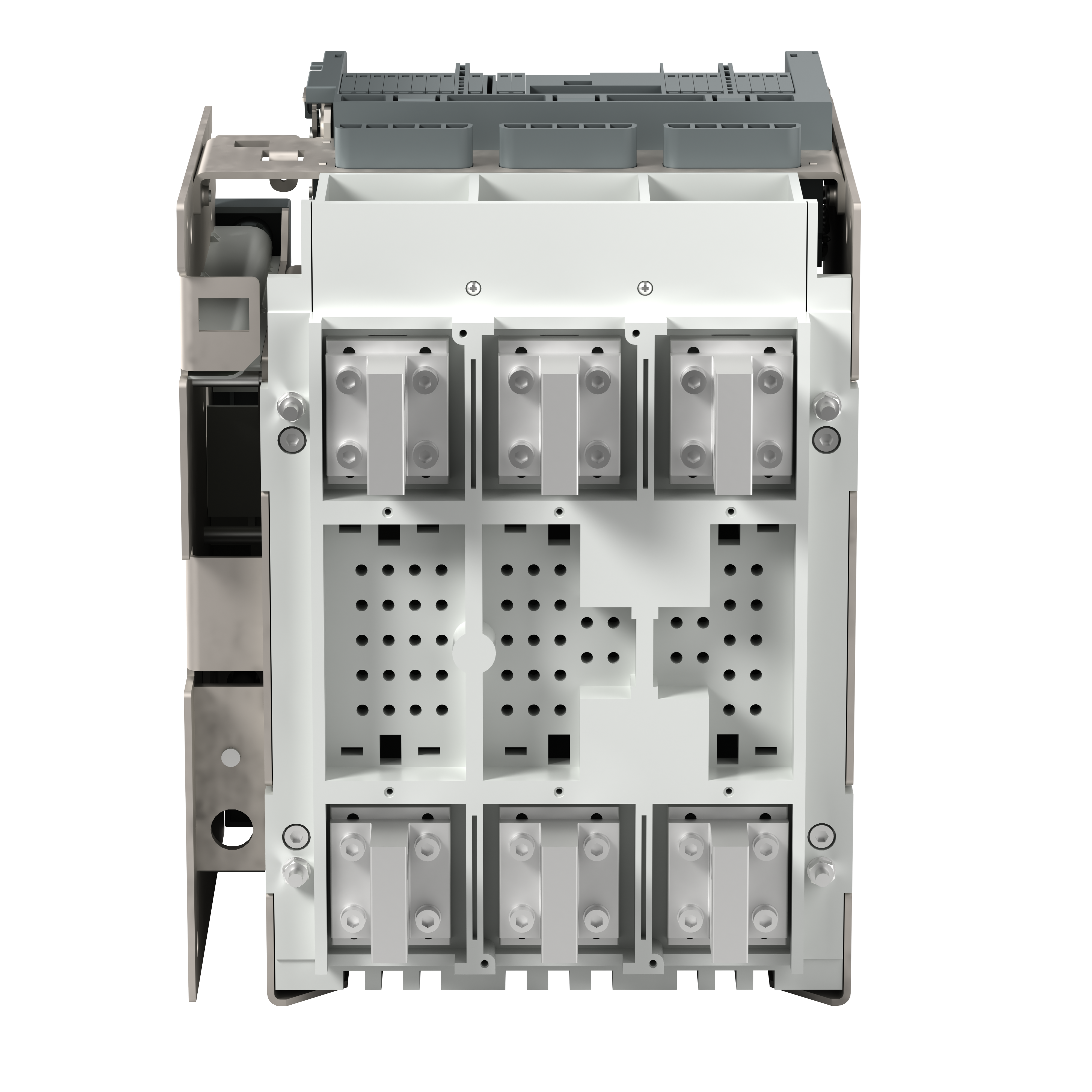

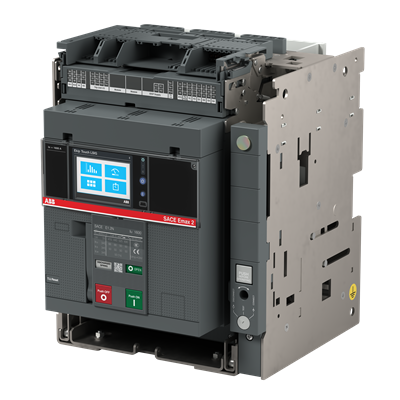

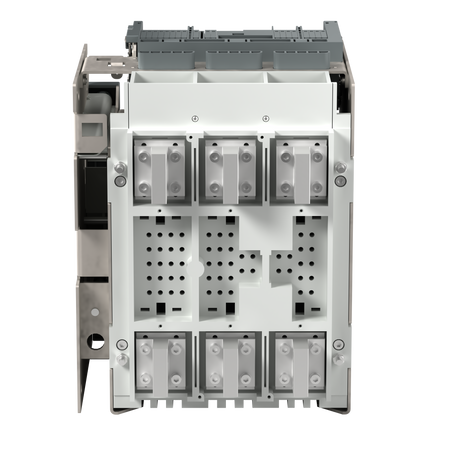

ABB E1.2N 1250A Air Circuit Breaker with Ekip Touch LI Release

The E1.2N is a 3-pole moving part air circuit breaker (ACB) from ABB's SACE Emax 2 range, rated at 1250A and fitted with the Ekip Touch LI electronic release for long and instantaneous overcurrent protection. Equipped with 4 auxiliary contacts and breaker position indication (open/closed), it is designed for withdrawable installation in main switchboards and large distribution panels, serving substations, commercial towers, and industrial facilities across the UAE.

Key Features

  • Ekip Touch LI electronic release provides long-time and instantaneous overcurrent protection with a touchscreen display
  • 1250A rated current with a high breaking capacity (Icu) of up to 66kA at 415V AC
  • 4 integrated auxiliary contacts plus open/closed breaker position indication for remote monitoring and control
  • High mechanical durability rated for 20,000 operating cycles and suitable for IT networks up to 690V
  • Genuine ABB Emax 2 quality — designed for withdrawable mounting with lifetime extension service support

Technical Specifications

Specification Details
Brand ABB
Model E1.2N 1250 Ekip Touch LI 3p WMP
Product Type Air Circuit Breaker (Moving Part)
Sub-type E1.2 (SACE Emax 2)
Poles 3
Rated Current (In) 1250A
Rated Uninterrupted Current (Iu) 1250A
Release Ekip Touch LI (Electronic)
Rated Operational Voltage 690V AC
Rated Insulation Voltage (Ui) 1000V AC
Rated Impulse Withstand Voltage (Uimp) 12kV
Breaking Capacity (Icu) at 415V AC 66kA
Rated Short-time Withstand Current (Icw, 1s) 50kA
Mechanical Durability 20,000 cycles
Suitable for IT Networks Yes, up to 690V
Standards IEC 60947-2

Applications

  • Main incomer protection in large switchboards for commercial towers and industrial plants
  • Generator and transformer protection in power distribution systems across the UAE
  • Critical infrastructure applications requiring advanced electronic monitoring and remote control
  • Withdrawable breaker installations in panel builder assemblies for high-current distribution
