ABB

ABB MCCB XT3N 250 TMD 200-2000 3p FF

رمز التخزين التعريفي: 1SDA068058R1
(0)
AED 750 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

ًالشحن مجانا
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

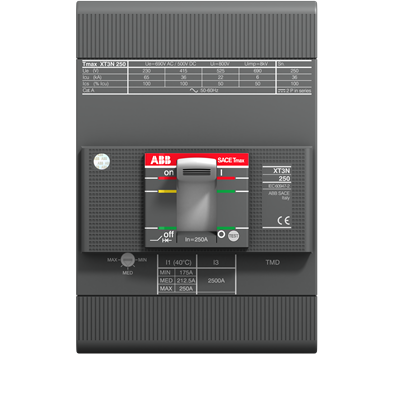

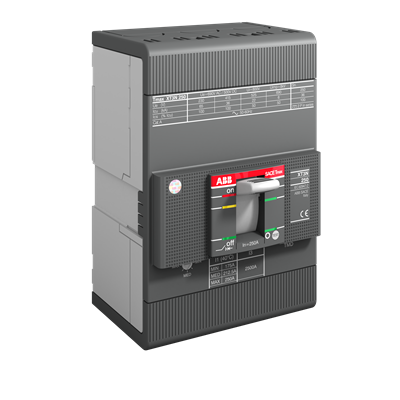

ABB Tmax XT3N 250 3-Pole Moulded Case Circuit Breaker

The XT3N 250 TMD is a fixed, three-pole moulded case circuit breaker from ABB's Tmax XT range, fitted with front terminals and a TMD thermomagnetic release offering an adjustable current setting range of 175-250A. Rated at 690V AC with a short-circuit performance level N, it provides robust protection for main distribution and sub-main applications in commercial and industrial UAE facilities, backed by a wide range of ABB accessories for customisation.

Key Features

  • 3-pole fixed MCCB rated at 250A with adjustable TMD thermomagnetic release (175-250A setting range)
  • Rated ultimate breaking capacity (Icu) of 36kA at 380-440V AC, suitable for demanding commercial and industrial fault levels
  • Front terminal bolt-type connections rated for busbar cross-sections of 85-192 mm²
  • High mechanical durability of 25,000 cycles and electrical durability of 8,000 cycles for long service life
  • Genuine ABB quality

Technical Specifications

Specification Details
Brand ABB
Model XT3N 250 TMD 250-2500 3p F F
Poles 3P
Rated Current (In) 250A
Setting Range (Thermomagnetic) 175-250A
Release Type TMD (Thermomagnetic)
Rated Instantaneous Short-Circuit Setting (Ii) 2500A
Rated Operational Voltage 690V AC / 500V DC
Rated Insulation Voltage (Ui) 800V
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Ultimate Breaking Capacity (Icu) 50kA (220-240V) / 36kA (380-440V) / 5kA (690V)
Terminal Connection Type Front, Bolt Terminal
Mounting Fixed
Current Type AC/DC
Net Weight 1.7 kg

Applications

  • Main and sub-main distribution board protection in commercial and industrial UAE buildings
  • Transformer and generator protection requiring adjustable thermomagnetic settings
  • Power distribution circuit protection in panel builder switchboard assemblies
  • Motor and feeder circuit protection where a compact, fixed 250A MCCB is required
