ABB

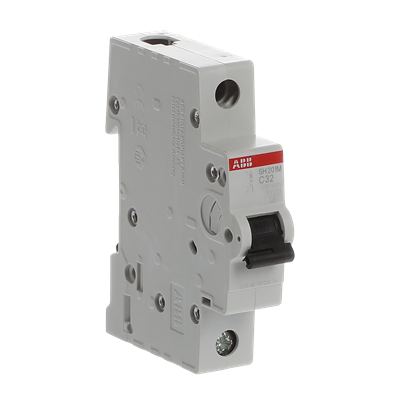

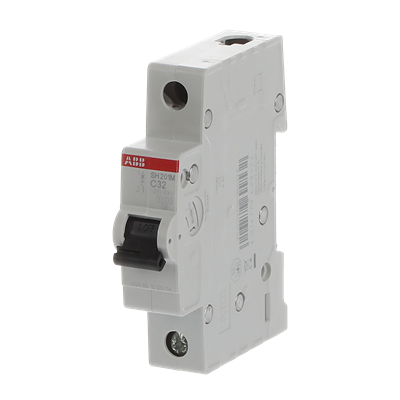

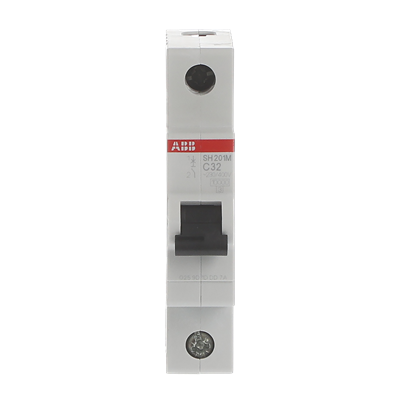

Abb SH201M-C32 Miniature Circuit Breaker 1P C 32A

رمز التخزين التعريفي: 2CDS271011R0324
(0)
AED 28 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

ًالشحن مجانا
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

ABB SH201M-C32 1-Pole 32A Type C MCB

The ABB SH201M-C32 is a 1-pole 32A Type C miniature circuit breaker with 10kA breaking capacity from the ABB SH200M series. Built for higher fault-level applications than the standard SH200 range, it is well suited to power and small distribution circuits in UAE commercial and industrial buildings where a higher breaking capacity is required.

Key Features

  • 1-pole 32A Type C MCB for protection of power circuits with moderate inrush currents
  • 10kA breaking capacity, suitable for higher fault-level UAE commercial and industrial installations
  • Cage screw terminals with connecting capacity up to 25 mm², accommodating a wide range of conductor sizes
  • DIN rail mounting compatible with both TH35-15 and TH35-7.5 rails per IEC 60715, for flexible panel installation
  • Genuine ABB SH200M series quality — consistent performance and reliability

Technical Specifications

Specification Details
Brand ABB
Model SH201M-C32
Rated Current 32A
Poles 1P
Tripping Characteristic Type C
Breaking Capacity 10kA (AC)
Rated Conditional Short-Circuit Current 25kA (230/400V)
Rated Operational Voltage 230 V AC (per IEC 60898-1)
Rated Insulation Voltage 440 V
Rated Frequency 50/60 Hz
Mounting DIN Rail (TH35-15 / TH35-7.5, acc. IEC 60715)
Terminal Type Screw Terminals (Cage)
Degree of Protection IP20 (IP40 with enclosure cover)
Mechanical Endurance 20,000 cycles
Electrical Endurance 10,000 AC cycles
Operating Temperature -25°C to +55°C
Width 17.5 mm (1 modular spacing)

Applications

  • Power circuit protection in commercial and industrial distribution boards
  • Distribution board upgrades requiring higher breaking capacity than standard residential MCBs
  • Sub-main and feeder circuit protection in FM-managed buildings across the UAE
  • Panel builder projects requiring 10kA-rated protection devices
