ABB

ABB E1.2 W FP Iu=1600 3p HR HR 1SDA073907R1

رمز التخزين التعريفي: 1SDA073907R1
(0)
AED 4,300 inc. VAT
Out of stock
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

ًالشحن مجانا
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

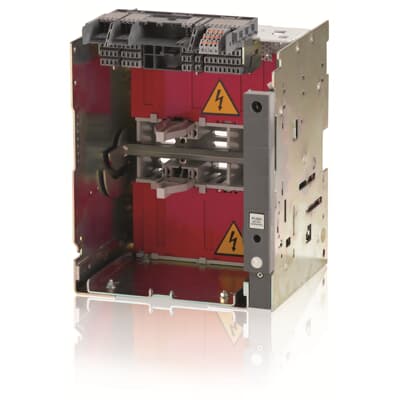

ABB E1.2 Fixed Part for SACE Emax 2 Air Circuit Breaker

The E1.2 W FP is a withdrawable fixed part designed for the ABB SACE Emax 2 E1.2 air circuit breaker, rated at 1600A and configured as a 3-pole unit with rear horizontal terminals. This chassis component allows the associated circuit breaker to be safely withdrawn for maintenance without disturbing the main power connections, supporting reliable operation in switchboards and main distribution panels used across UAE commercial and industrial facilities.

Key Features

  • Withdrawable fixed part chassis for the SACE Emax 2 E1.2 air circuit breaker, rated at 1600A
  • 3-pole configuration with rear horizontal terminals for compact switchboard integration
  • High rated insulation voltage of 1000V AC and 12kV impulse withstand voltage for demanding electrical environments
  • Bolt-type terminal connection with a 45 N·m tightening torque for secure, high-current connections
  • Genuine ABB Emax 2 quality — designed for safe breaker withdrawal and maintenance access

Technical Specifications

Specification Details
Brand ABB
Model E1.2 W FP Iu=1600 3p HR HR
Product Type Fixed Part (Withdrawable Chassis) for Air Circuit Breaker
Sub-type E1.2 (SACE Emax 2)
Poles 3
Rated Current (In) 1600A
Rated Uninterrupted Current (Iu) 1600A
Current Type AC
Rated Operational Voltage 690V AC / 800V AC
Rated Insulation Voltage (Ui) 1000V AC
Rated Impulse Withstand Voltage (Uimp) 12kV
Terminal Connection Type Rear Flat Horizontal
Terminal Type Bolt
Connecting Capacity 1200mm²
Standards IEC 60947-2

Applications

  • Main switchboard installations requiring withdrawable air circuit breaker configurations
  • High-current distribution panels in commercial towers and industrial facilities across the UAE
  • Power distribution systems where breaker maintenance without full circuit shutdown is required
  • Panel builder assemblies incorporating SACE Emax 2 series air circuit breakers
