ABB

ABB DSE201 M 1P+N RCBO 20A 30mA

رمز التخزين التعريفي: 1SDA067398R1
(0)
AED 145 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

ًالشحن مجانا
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

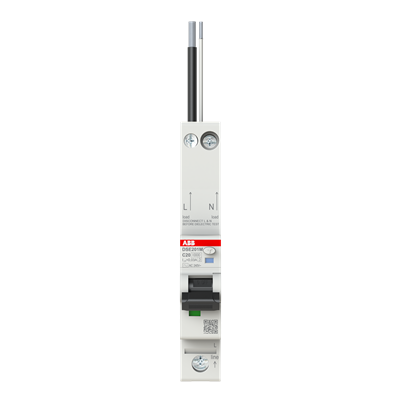

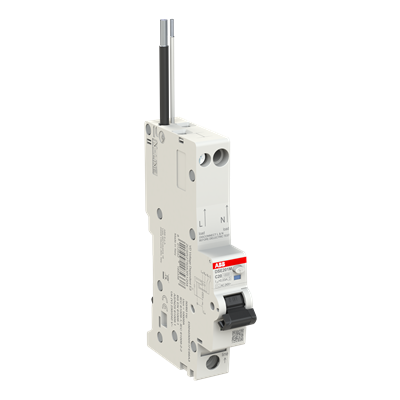

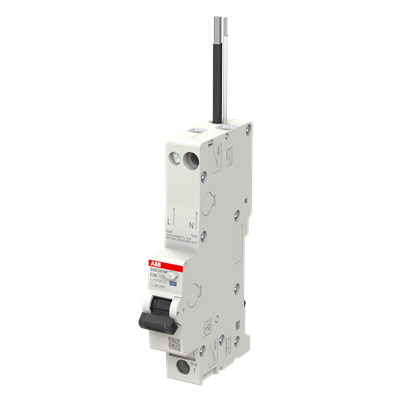

ABB DSE201 M 1P+N RCBO 20A 30mA

The DSE201 M C20 AC30 is a 1P+N electronic residual current circuit breaker with overcurrent protection (RCBO) in a compact one-module width, combining overload and short-circuit protection with high-sensitivity residual current protection in a single device. With a 30mA Type AC sensitivity, it provides additional protection against direct contacts as well as protection against indirect contacts, making it well suited to end-user single-phase circuits in UAE residential and commercial distribution boards where personnel safety is a priority.

Key Features

  • Combined overcurrent and residual current protection in a single 1-module-wide device, saving distribution board space
  • 20A Type C overcurrent protection paired with 30mA Type AC residual current sensitivity for personnel protection
  • Additional protection against direct contacts as well as protection against indirect contacts
  • Unswitched neutral with flying lead connections for neutral and functional earth, simplifying installation
  • Genuine ABB quality

Technical Specifications

Specification Details
Brand ABB
Model DSE201 M C20 AC30
Poles 1P+N
Rated Current (In) 20A
Tripping Characteristic Type C
Rated Residual Current 30 mA
Residual Current Type Type AC
Rated Ultimate Breaking Capacity (Icu) 15 kA
Rated Short-Circuit Capacity 10 kA
Rated Operational Voltage 230/240V AC
Rated Insulation Voltage (Ui) 500V
Mounting DIN Rail
Degree of Protection Terminals IP20 / Housing IP40
Operating Temperature -25°C to +55°C
Net Weight 200 g

Applications

  • Personnel protection circuits requiring 30mA sensitivity in residential and commercial installations
  • Bathroom, kitchen, and outdoor socket circuit protection in UAE villas and apartments
  • Combined overcurrent and earth leakage protection where direct contact safety is required
  • Retrofit upgrade from separate MCB and RCCB to a single combined device in distribution boards
