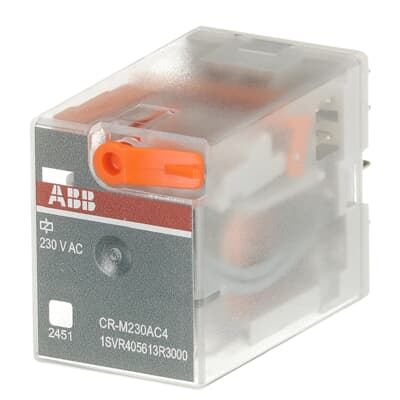

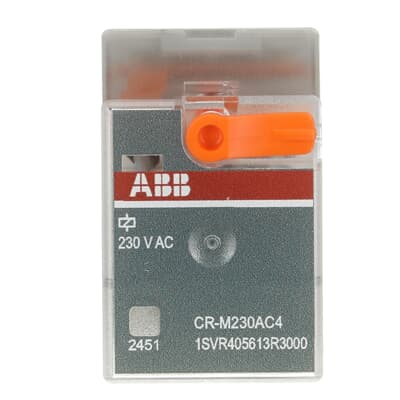

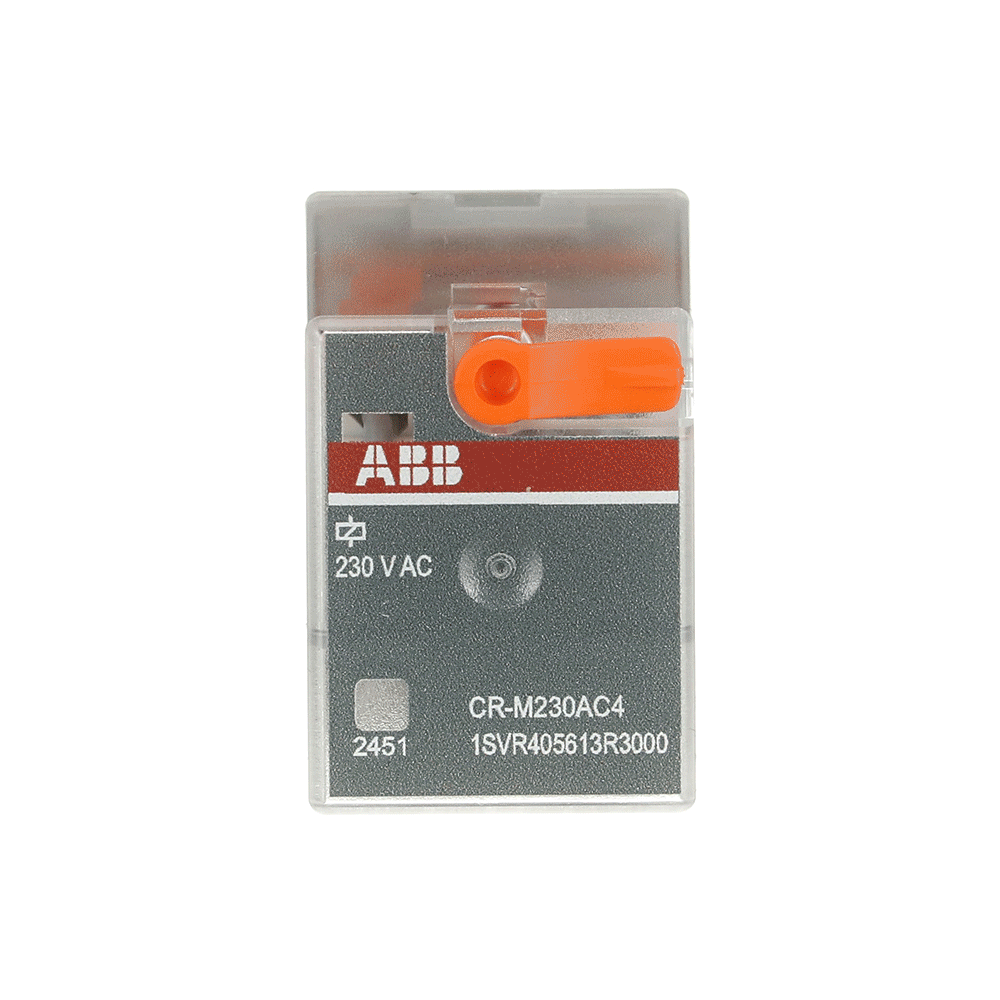

ABB CR-M230AC4 Pluggable Interface Relay

The CR-M230AC4 is a pluggable miniature interface relay from ABB's CR-M range, designed to plug into a compatible ABB CR-M socket for snap-on DIN rail mounting. Operating on a 230V AC control supply, it provides a 4 c/o (SPDT) output rated at 250V/6A, allowing multiple circuits to be switched from a single input signal — a common requirement in control panels and automation systems across UAE commercial and industrial facilities.

Key Features

  • 4 c/o (SPDT) output contacts rated at 250V/6A for switching up to four circuits from one input
  • 230V AC rated control supply voltage for direct compatibility with mains-level control circuits
  • Integrated test button for manual actuation and easy commissioning without live circuit testing
  • Integrated LED provides visual indication of relay coil energization
  • Genuine ABB quality — plugs into standard CR-M sockets for fast DIN rail installation

Technical Specifications

Specification Details
Brand ABB
Model CR-M230AC4
Function Pluggable miniature interface relay
Rated Control Supply Voltage (Us) 230V AC
Output 4 C/O (SPDT) Contacts
Output Signal 250V / 6A
Rated Operational Voltage 250V AC
Rated Frequency 50/60Hz
Terminal Type Flat-Pin Connections
Rated Insulation Voltage (Ui) 250V
Degree of Protection IP40
Standards IEC/EN 61810-1, UL 508, CAN/CSA C22.2 No.14
Ambient Operating Temperature -40°C to +55°C

Applications

  • Signal interfacing between PLCs and higher-power output circuits in control panels
  • Multi-circuit switching from a single control signal in automation and process systems
  • Relay logic and control wiring in BMS and building automation installations across the UAE
  • Interface relay applications in industrial control cabinets and panel builder assemblies
