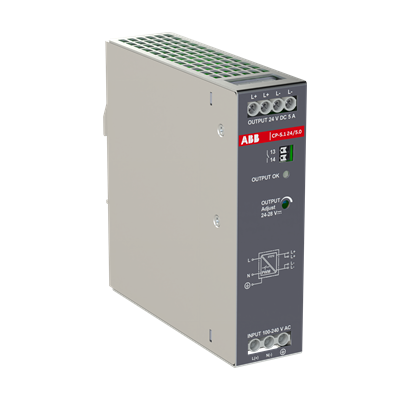

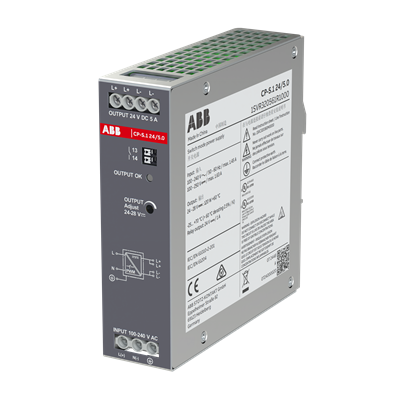

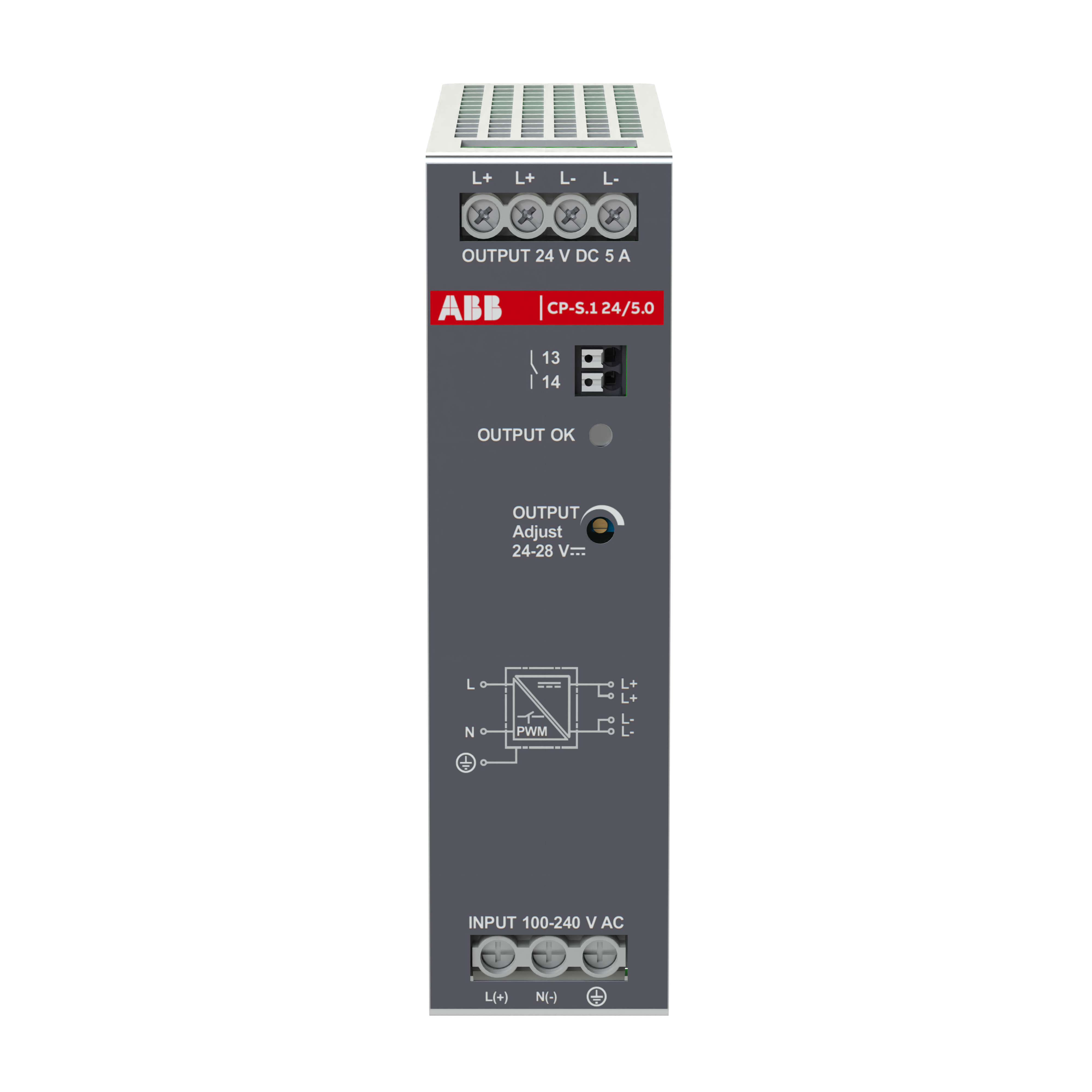

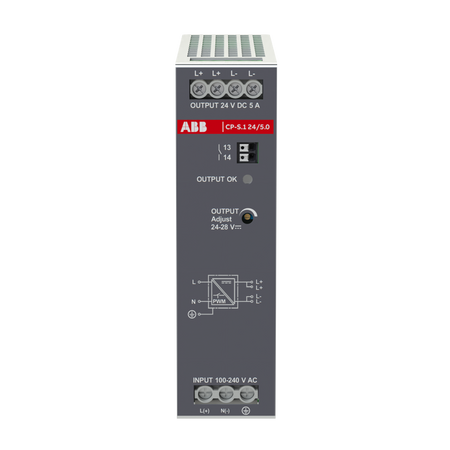

ABB CP-S.1 24/5.0 DIN Rail Power Supply

The CP-S.1 24/5.0 is a primary switch mode power supply from ABB's new-generation CP-S.1 range, converting a wide 100-240V AC or 100-250V DC input into a regulated 24V DC output at 5A. Designed for DIN rail mounting in control panels and distribution boards, it offers power factor correction and supports parallel operation for capacity increase or redundancy, making it suitable for automation and control applications in UAE commercial and industrial facilities.

Key Features

  • Wide input range of 85-264V AC or 90-277V DC accommodates variable mains conditions
  • Rated 120W output power with 5A rated current at an adjustable 24-28V DC output voltage
  • Power reserve of up to 150% for 5 seconds handles inrush loads without nuisance tripping
  • Supports parallel operation for increased capacity or N+1 redundancy in critical control systems
  • Genuine ABB quality — power factor correction to EN 61000-3-2 and IP20 housing protection

Technical Specifications

Specification Details
Brand ABB
Model CP-S.1 24/5.0
Function Switch mode power supply
Rated Input Voltage 100-240V AC / 100-250V DC
Input Voltage Range 85-264V AC / 90-277V DC
Rated Output Voltage 24V DC (adjustable 24-28V DC)
Rated Output Current 5A (max 7.5A)
Rated Output Power 120W
Rated Frequency 50/60Hz
Degree of Protection IP20
Mounting DIN Rail (TH35-15 / TH35-7.5)
Ambient Operating Temperature -25°C to +70°C
Standards IEC/EN 61010-1, IEC/EN 61204-3, EN 55032, EN 55011

Applications

  • DC power supply for PLCs and control systems in industrial automation panels
  • Power source for BMS and building automation control circuits in UAE commercial buildings
  • Redundant or parallel power supply setups for critical control applications
  • DIN rail integration in switchboards and control cabinets for FM and industrial facilities
