ABB

ABB MCCB A1N 125 TMF 80-800 3p F F 1SDA066729R1

رمز التخزين التعريفي: 1SDA066729R1
(0)
AED 180 inc. VAT
In stock
Usually ships within 24 hours
Ready to work out of the box!

All items are delivered with essential accessories and easy-to-follow instructions. Unbox and start your projects with confidence!

ًالشحن مجانا
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +971 50 536 2775

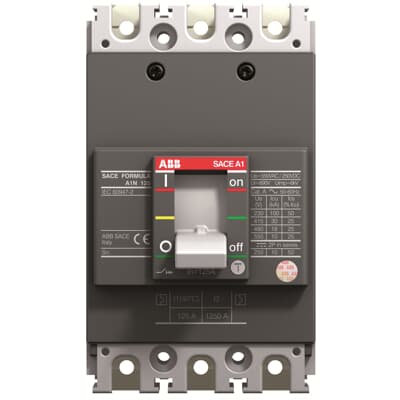

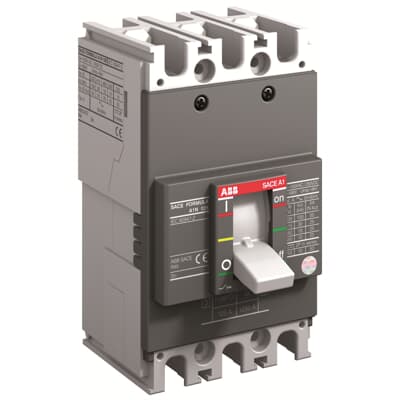

ABB A1N 125 TMF80 3-Pole Moulded Case Circuit Breaker

The A1N 125 TMF 80-800 is a fixed three-pole moulded case circuit breaker from ABB's SACE Formula range, rated at 80A with a thermomagnetic (TMF) release and front terminal connections. Designed for protection of feeders, distribution circuits, and machinery, it offers reliable overload and short-circuit protection suited to commercial and industrial installations across the UAE.

Key Features

  • 3-pole moulded case circuit breaker with 80A rated current and 125A frame (Iu) rating
  • TMF thermomagnetic release providing combined overload and short-circuit protection
  • 36kA rated ultimate breaking capacity (Icu) at 415V for robust fault-condition performance
  • Front terminal connections for straightforward panel installation and wiring access
  • Genuine ABB quality — 8,500 mechanical operating cycles for long-term reliability

Technical Specifications

Specification Details
Brand ABB
Model A1N 125 TMF 80-800 3P F F
Number of Poles 3P
Rated Current (In) 80A
Rated Uninterrupted Current (Iu) 125A
Release Type TMF (Thermomagnetic, fixed)
Rated Operational Voltage 550V AC / 250V DC
Rated Insulation Voltage (Ui) 690V
Rated Impulse Withstand Voltage (Uimp) 6kV
Rated Ultimate Breaking Capacity (Icu) at 415V 36kA
Rated Service Breaking Capacity (Ics) at 415V 7.5kA
Terminal Connection Type Front
Standards IEC
Mechanical Durability 8,500 operations
Electrical Durability 1,500 operations
Net Weight 0.798 kg
Dimensions (W x H x D) 76.2 x 130 x 60 mm

Applications

  • Feeder and distribution circuit protection in commercial and industrial panels
  • Motor and machinery circuit protection requiring combined overload and short-circuit trip
  • Main or sub-main protection in low voltage distribution boards
  • Panel builds across the UAE requiring compact, front-terminal MCCB protection
