ABB

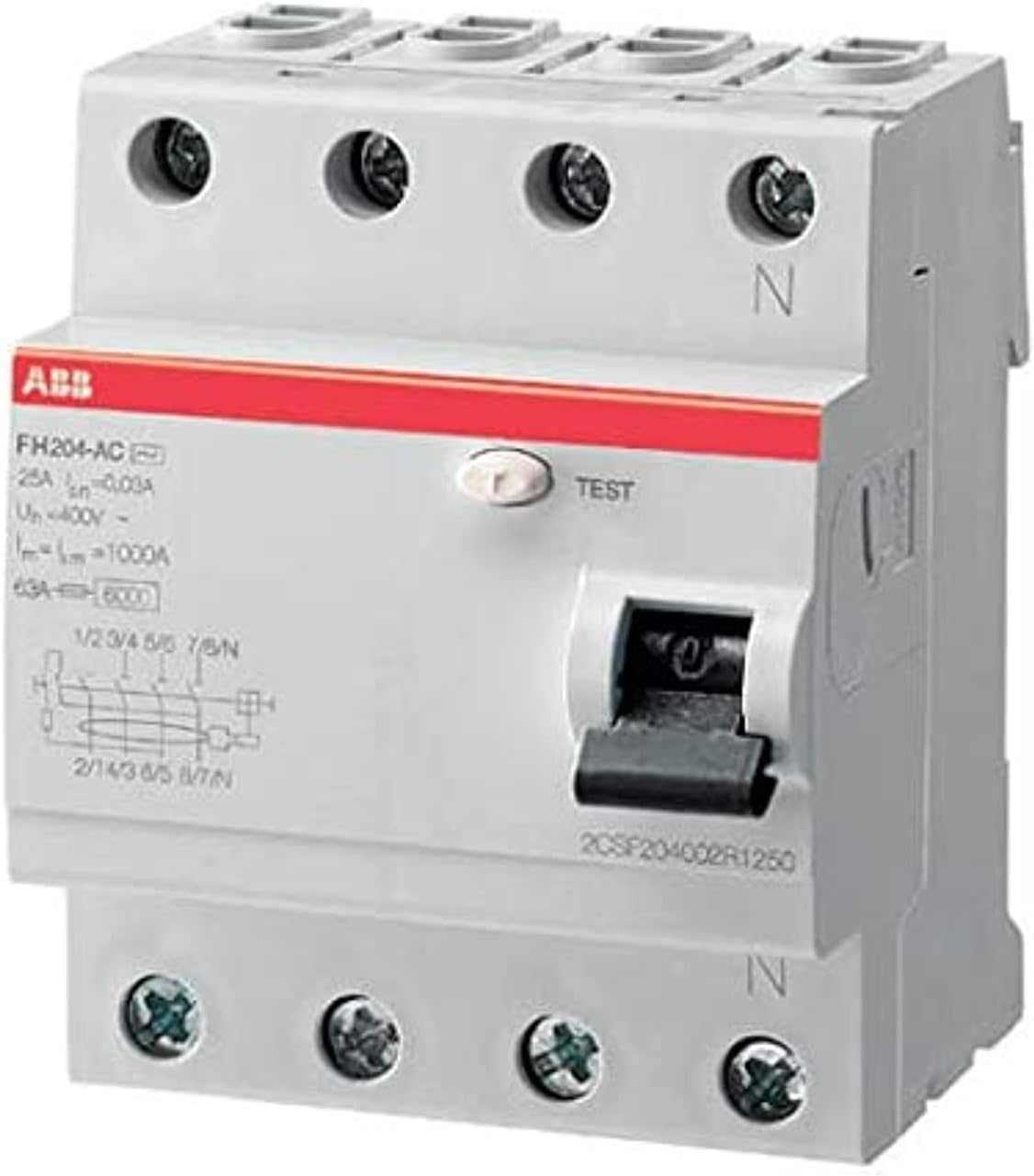

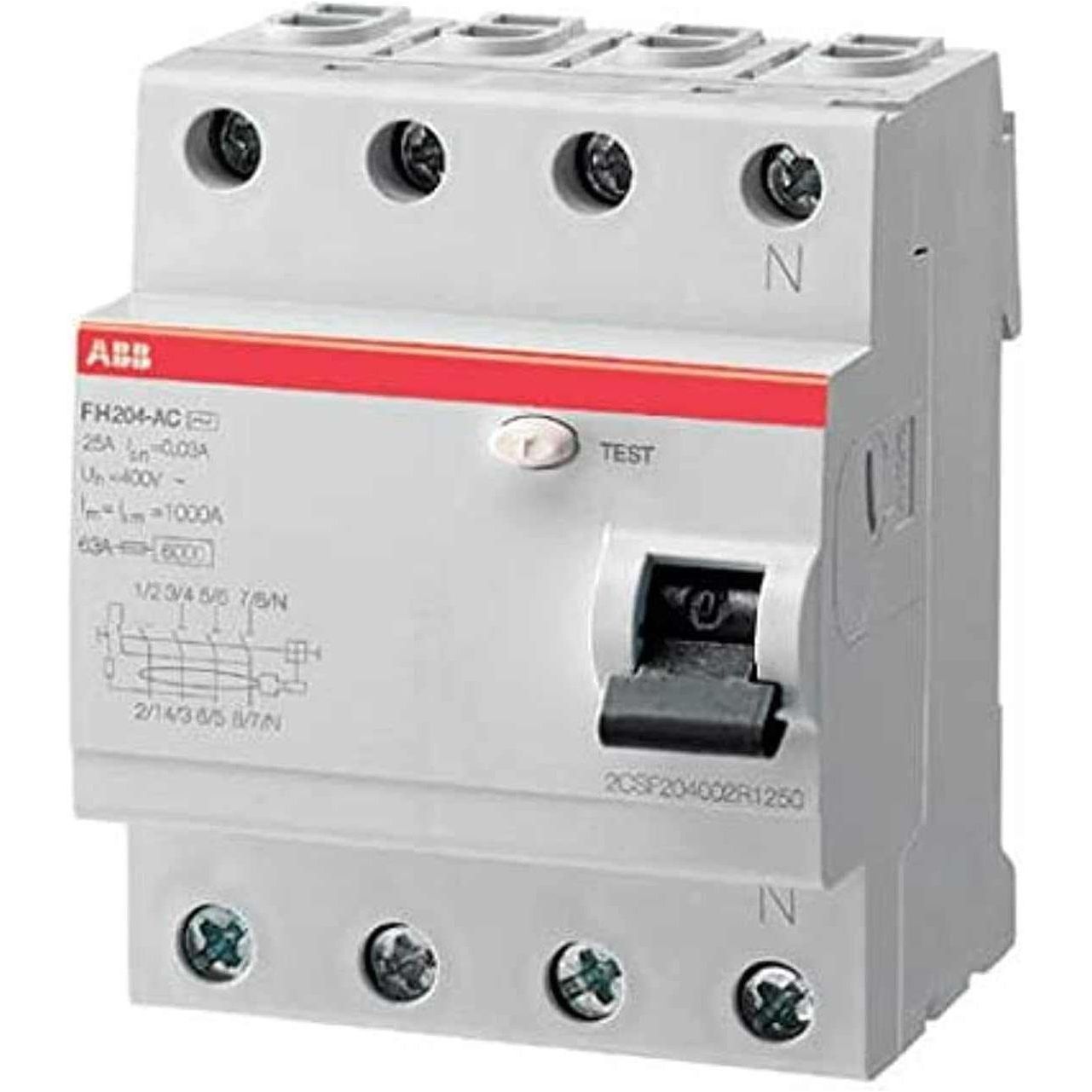

ABB Earth Leakage Circuit Breaker - 40A 4 Pole 30mA (ELCB/RCCB) - FH204 AC-40/0, 03

ABB Earth Leakage Circuit Breaker - 40A 4 Pole 30mA (ELCB/RCCB) - FH204 AC-40/0, 03

سعر عادي Dhs. 149.00
سعر عادي سعر البيع Dhs. 149.00
أُوكَازيُون نفذ
يتم احتساب الشحن عند الخروج.

Technical Standards:Iec 61008 Operating Characteristic:Instantaneous Type Of Residual Current:Ac Type Rated Residual Current:30 Ma Rated Current (In):40 A Number Of Poles:4 Position Of Neutral Terminals:Right Power Loss:At Rated Operating Conditions Per Pole 3.2 W Rated Voltage (Ur):400 V Rated Frequency (F):50.60 Hz Environmental Ambient Air Temperature:Operation -25.55 °C Rohs Status:Following Eu Directive 2011/65/Eu Technical Ul/Csa Short-Circuit Current Rating (Sccr):0.03 Ma Dimensions Product Net Width:0.070 M Product Net Height:0.085 M Product Net Depth / Length:0.069 M Product Net Weight:0.360 Kg Container Information Package Level 1 Units:1 Piece Package Level 1 Width:0.082 M Package Level 1 Height:0.078 M Package Level 1 Depth / Length:0.096 M Package Level 1 Gross Weight:0.403 Kg Package Level 1 Ean:8012542895206 Ordering Minimum Order Quantity:1 Piece Customs Tariff Number:85363030 Certificates And Declarations (Document Number) Declaration Of Conformity - Ce:9Akk106713A5603 Environmental Information:Refer To Rohs Instructions And Manuals:Printed On Product Rohs Information:2Csc423001K2702 Popular Downloads Data Sheet, Technical Information:2Csc400030D0202 Instructions And Manuals:Printed On Product.

  • Standards: IEC 61008
  • Rated Residual Current: 30 mA
  • Rated Current (In): 40 A
  • Number of Poles: 4
  • Rated Voltage (your): 400 V
Brand ABB
Current rating 40 Amps
Voltage 400 Volts
Circuit breaker type Standard
Number of poles 4
